Mercedes A0025451128 - ГИЛЬЗА

1314 KO/LKO,1317 KO 675.093

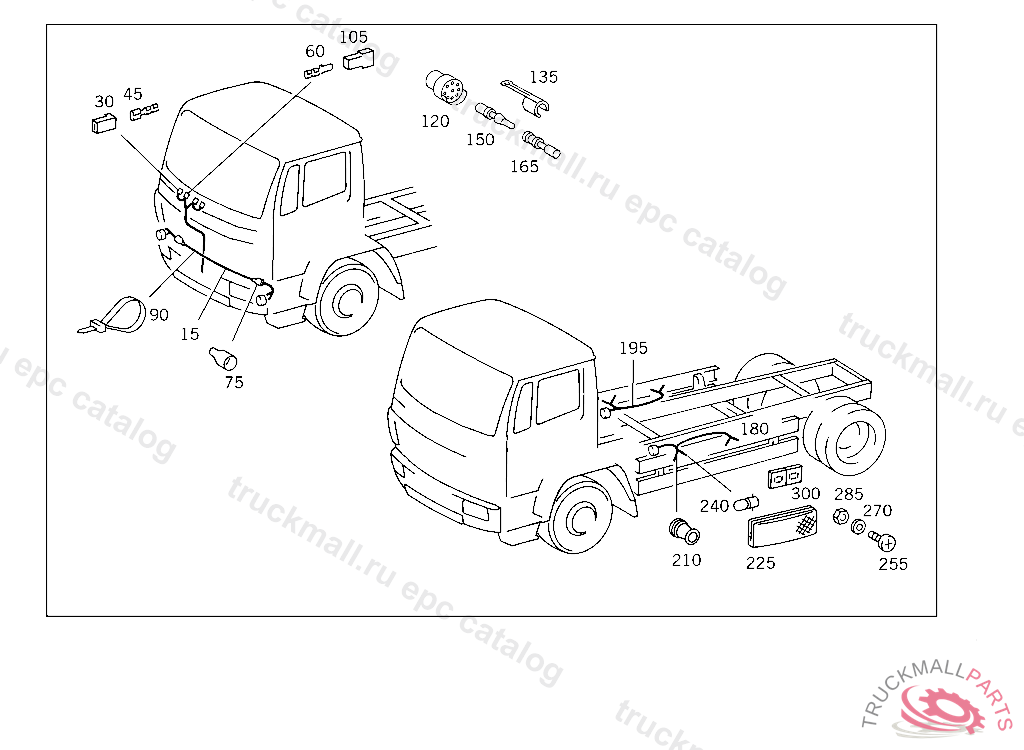

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 040 CONTACT PARTS,GROMMETS,MOUNTING PARTS, BULBS IL. 1

Поз.
Артикул
Описание
15
A6735406827
ELECTRIC CABLE FROM CHASSIS/CAB PLUG CONNECTION TO SIDE MARKER LAMPS
30
A0025451128
PIN BUSHING HOUSING UNIPOLAR
45
A0005453726
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
60
A0025450628
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
75
A0019971381
GROMMET SIDE MARKER LAMP CABLE PASSAGE, NOT USED
90
A0019978390
LOOM TIE LINE MOUNTING 280 MM
105
A0025451328
PIN BUSHING HOUSING UNIPOLAR
120
A0025454726
PLUG SOCKET
135
A0005450673
LOCK
150
A0115453728
ROUND PLUG
165
A0145455528
BUSHING
180
A6744402327
ELECTRIC CABLE LEFT SIDE LAMP
195
A6744403627
ELECTRIC CABLE RIGHT SIDE LAMP
210
A0089971581
GROMMET
225
A0028204456
EXTERIOR LAMP (SIDE MARKER LAMP),AMBER
225
A0028203456
EXTERIOR LAMP , Replaced By: A0028204456
240
N072601024250
BULB24V-5W
255
N007985005181
SCREW SIDE MARKER LAMP
270
N009021005205
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
270
N009021005202
WASHER , Replaced By: N009021005205
285
N913004005001
NUT TWO-WAY VALVE TO BRACKET
300
A0005730042
PLATE CABLE HARNESS MOUNTING
