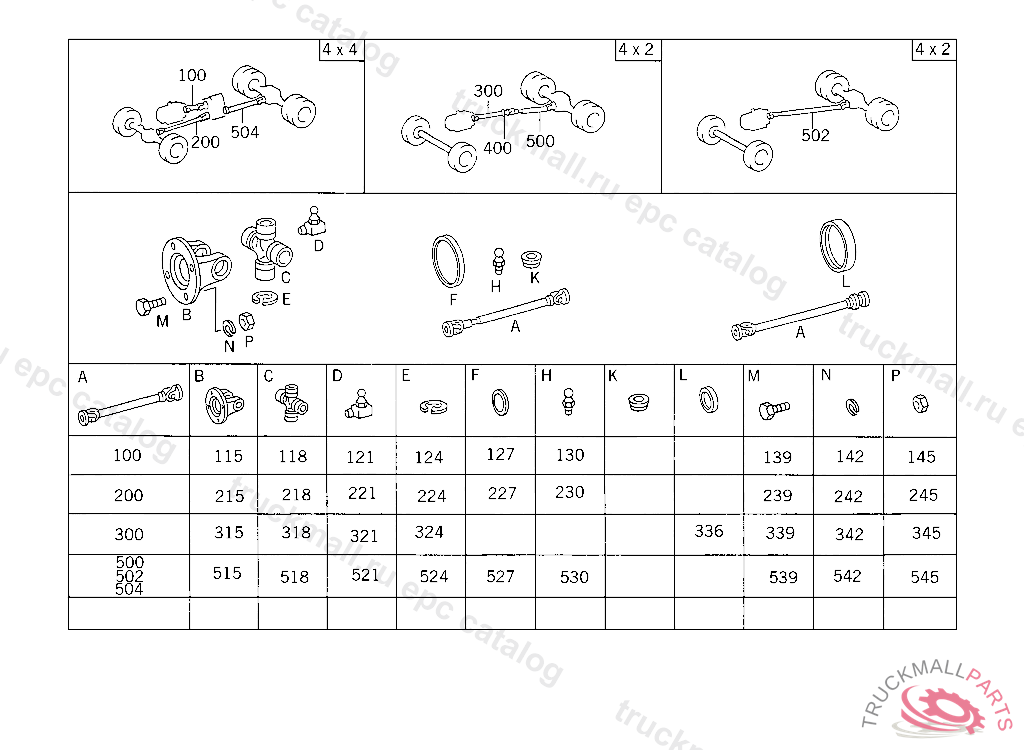

Поз.
Артикул
Описание
100
PROPELLER SHAFT FROM TRANSMISSION TO TRANSFER CASE 470 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
100
PROPELLER SHAFT FROM TRANSMISSION TO TRANSFER CASE 450 MM,5 4333795 907660 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
115
DRIVE FLANGE
118
UNIVERSAL JOINT CROSS WITH BUSHINGS
118
UNIVERSAL JOINT CROSS , Replaced By: A0004104031
121
GREASE NIPPLE
124
LOCK AS REQUIRED 2.00 MM
124
LOCK RING SHIFT LEVER BEARING
124
LOCK AS REQUIRED 1.88 MM
127
SEAL RING PROTECTIVE TUBE 77X14,5 MM
127
SEAL RING PROTECTIVE TUBE 74.5X22 MM
130
GREASE NIPPLE , Replaced By: N071412008102
130
GREASE NIPPLE
139
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
139
SCREW , Replaced By: A0079901001
139
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
142
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
145
NUT FROM PROPELLER SHAFT TO FRONT AXLE
200
PROPELLER SHAFT FROM INTERMEDIATE BEARING II TO REAR AXLE 974 MM,4 609738 LESS BOOT PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
200
PROPELLER SHAFT FROM INTERMEDIATE BEARING TO REAR AXLE 1070 MM,4 609737 BEARING BUSHING O..D.,42 MM PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
215
DRIVE FLANGE
218
UNIVERSAL JOINT CROSS WITH BUSHINGS
218
UNIVERSAL JOINT CROSS , Replaced By: A0004104031
221
GREASE NIPPLE
224
LOCK AS REQUIRED 2.00 MM
224
LOCK AS REQUIRED 1.88 MM
224
LOCK RING SHIFT LEVER BEARING
227
SEAL RING PROTECTIVE TUBE 77X14,5 MM
227
SEAL RING PROTECTIVE TUBE 74.5X22 MM
230
GREASE NIPPLE , Replaced By: N071412008102
230
GREASE NIPPLE
239
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
239
SCREW , Replaced By: A0079901001
239
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
242
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
245
NUT FROM PROPELLER SHAFT TO FRONT AXLE
504
PROPELLER SHAFT FROM TRANSFER CASE TO REAR AXLE 815 MM
504
PROPELLER SHAFT FROM TRANSMISSION TO TRANSFER CASE 785 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
504
PROPELLER SHAFT FROM TRANSMISSION TO TRANSFER CASE 710 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
515
DRIVE FLANGE
518
UNIVERSAL JOINT CROSS , Replaced By: A9734100031
518
UNIVERSAL JOINT CROSS WITH BUSHINGS
521
GREASE NIPPLE
524
LOCK AS REQUIRED 1.85 MM
524
LOCK AS REQUIRED 1.80 MM
524
LOCK AS REQUIRED 1.70 MM
527
SEAL RING PROTECTIVE TUBE 95X14.5 MM
530
GREASE NIPPLE , Replaced By: N071412008102
530
GREASE NIPPLE
539
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
539
SCREW , Replaced By: A3609903001
542
LOCK WASHER FITTING TO BRACKET
545
NUT PROPELLER SHAFT TO COUPLING FLANGE
