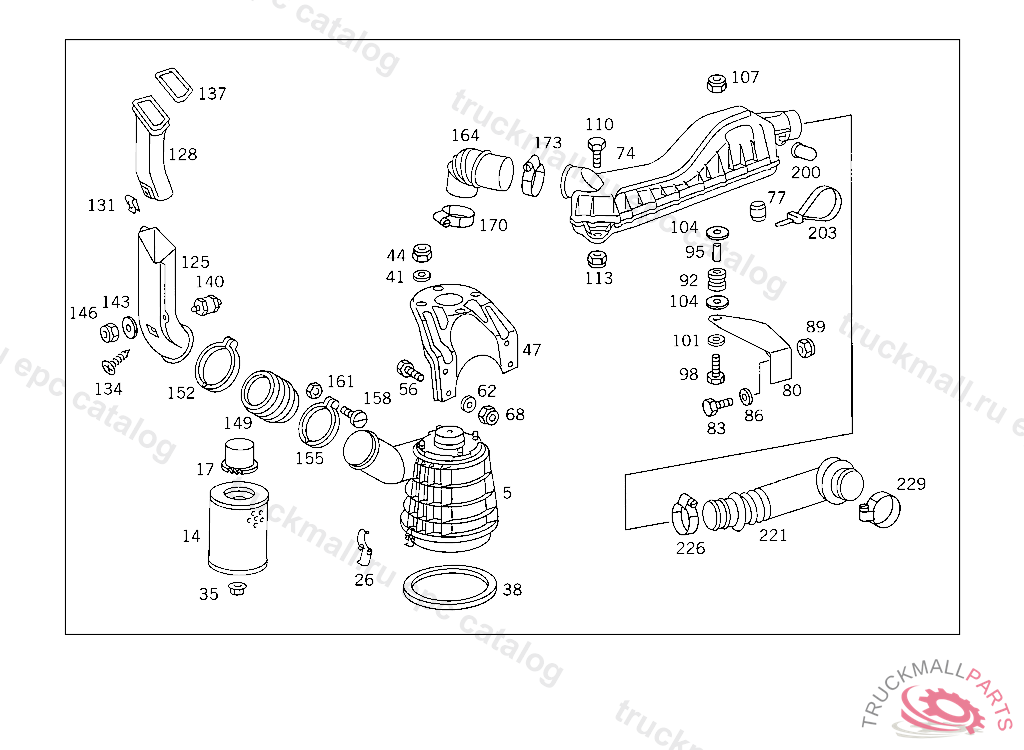

Поз.
Артикул
Описание
14
FILTER ELEMENT AIR CLEANER MANN & HUMMEL
14
FILTER ELEMENT AIR CLEANER
14
FILTER ELEMENT
14
FILTER ELEMENT , Replaced By: A0010948204
17
AIR BAFFLE AIR CLEANER
26
FASTENER
35
NUT
35
NUT
35
NUT
35
NUT
38
GASKET AIR CLEANER BOWL
56
SCREW CONSOLE TO FRAME
62
WASHER BRACKET TO FRAME
62
WASHER , Replaced By: N000125017016
68
NUT COMBINATION CYLINDER TO BEARING BRACKET
68
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
74
MUFFLER (INTAKE MUFFLER)
77
RUBBER MOUNTING BRACKET TO BEARING BRACKET
80
BRACKET INTAKE MUFFLER
80
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 494909, Replaced By: A6735282440
83
SCREW PIPE CLAMP
86
WASHER EXHAUST MUFFLER TO STRAP
89
NUT , Replaced By: N913004008001
92
RUBBER MOUNTING INTAKE MUFFLER TO BRACKET
95
SPACER TUBE PUMP TO FRAME SIDE MEMBER 12X21 MM
98
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
98
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
98
SCREW BRACKET TO SIDE MEMBER
98
SCREW , Replaced By: N304017008040
101
WASHER EXHAUST MUFFLER TO STRAP
101
WASHER , Replaced By: N000125008443
104
RETAINER INTAKE MUFFLER TO BRACKET
107
NUT , Replaced By: N913004008001
110
SCREW EXHAUST PIPE TO BRACKET
113
NUT STRAP TO BRACKET
113
NUT , Replaced By: N910113010000
125
AIR INTAKE PIPE
128
MUFFLER AIR INTAKE PIPE,INSIDE
131
LOCK ELECTRIC CABLE THRU CAB FLOOR
134
SHEET METAL SCREW MUFFLER TO AIR INTAKE PIPE,INSIDE
137
SEAL RING MUFFLER TO AIR INTAKE PIPE,INSIDE, DISCONTINUED,PART IS NO LONGER REQUIRED
140
BUFFER REFRIGERANT LINE TO CAB
140
BUFFER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6739880511
143
WASHER BRACKET TO LEFT SIDE MEMBER
143
WASHER , Replaced By: N009021008213
146
NUT , Replaced By: N913004008001
149
BOOT AIR INTAKE
149
BOOT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 034532, Replaced By: A0005280091
152
CLAMP BOOT TO INTAKE PIPE
155
CLAMP BOOT TO AIR CLEANER,K 034532
158
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER
161
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
173
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE 100-120X13 MM
173
CLAMP , Replaced By: A0059970690
200
CAP INTAKE MUFFLER FITTING
203
LOOM TIE LINE MOUNTING 280 MM
221
HOSE FROM MUFFLER TO ENGINE
226
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
226
CLAMP , Replaced By: A0059972990
226
CLAMP , Replaced By: N000000000675
229
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
229
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
