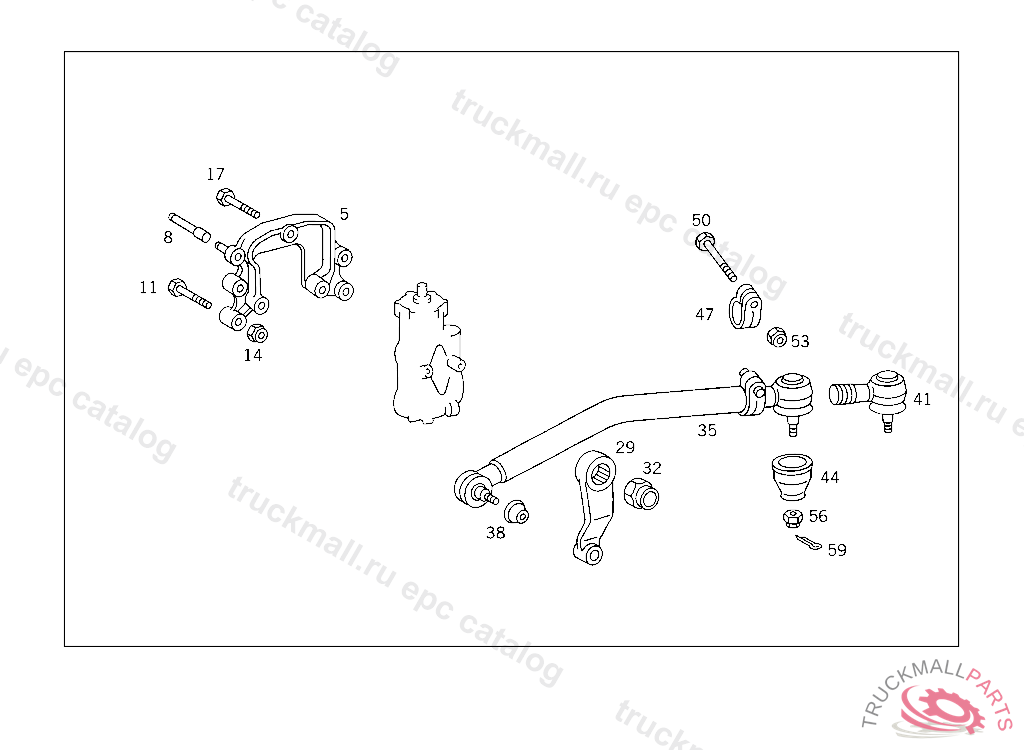

Поз.
Артикул
Описание
5
STEERING SUPPORT (STEERING BRACKET)
5
STEERING BRACKET
8
PIN
11
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
11
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
11
SCREW , Replaced By: N000960016206
14
NUT COMBINATION CYLINDER TO BEARING BRACKET
14
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
17
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
17
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
17
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
17
SCREW , Replaced By: N308676016007
29
PITMAN ARM , Replaced By: A6754631701
29
PITMAN ARM
32
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
35
DRAG LINKEHRENREICH
35
DRAG LINK , Replaced By: A6754603105
35
DRAG LINKLEMFOERDER
35
DRAG LINK , Replaced By: A6754602505
35
DRAG LINKEHRENREICH
35
DRAG LINK , Replaced By: A6754603005
35
DRAG LINKLEMFOERDER
35
DRAG LINK , Replaced By: A6754602405
38
BOOT FIXED PART OF JOINT
38
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300885
41
DRAG LINK END TO BE SCREWED INTO DRAG LINK EHRENREICH
41
DRAG LINK END , Replaced By: A0004602748
41
DRAG LINK END ,K 055088
41
DRAG LINK END , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004602648
44
BOOT SCREWED PART OF JOINT
47
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
47
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
50
SCREW TORSION BAR TO SHACKLE,5 903514
50
SCREW ,5 903514, Replaced By: N000960012353
53
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
53
NUT , Replaced By: N910113012003
56
NUT DRAG LINK TO LEVER,4 215305
56
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
59
COTTER PINROCKINGER TYP 260 G140
59
COTTER PINROCKINGER TYP 260 G140
