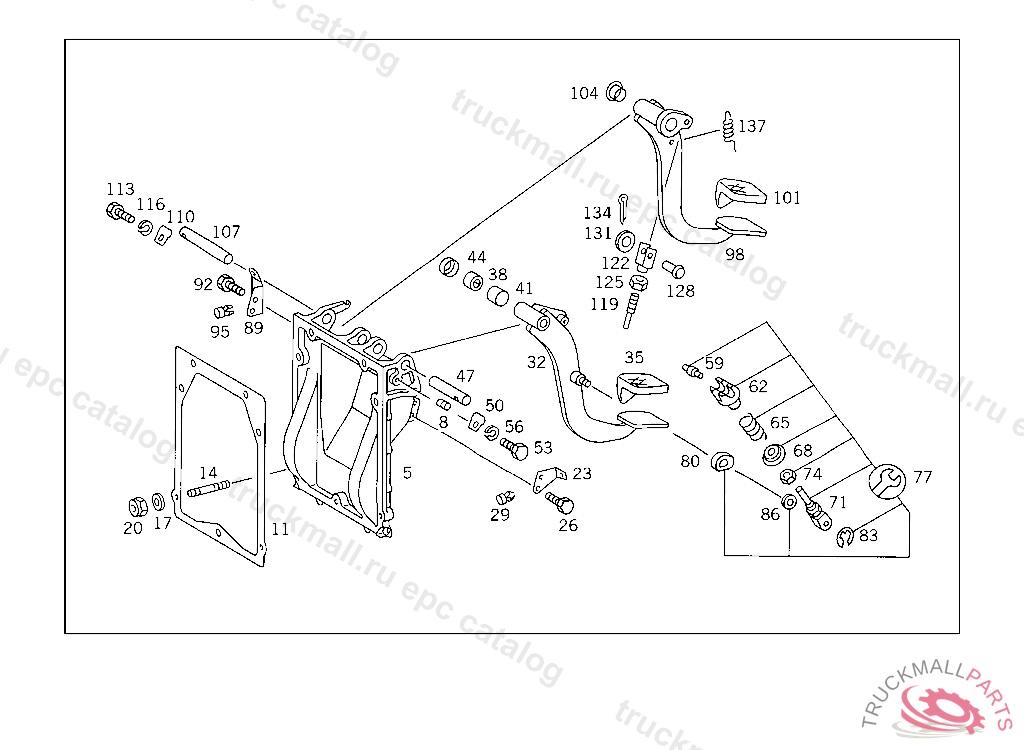

Поз.
Артикул
Описание
5
BEARING BRACKET (PEDAL BEARING BRACKET)
5
BEARING BRACKET (PEDAL BEARING BRACKET)
8
THREADED INSERT
11
GASKET BEARING BRACKET TO CAB
14
STUD
14
STUD , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 219888, Replaced By: A6732940270
14
STUD , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 219888, Replaced By: A6732940270
17
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
20
NUT , Replaced By: N913004008001
23
STOP CLUTCH PEDAL,5 219889
23
STOP CLUTCH PEDAL,5 219888
26
SCREW COVER PLATE TO COVER PLATE M 6 X 12
26
SCREW , Replaced By: N304017006018
29
STOP , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6732910286
29
STOP CLUTCH PEDAL AND BRAKE PEDAL
32
PEDAL CLUTCH,5 219889
32
PEDAL ,5 219888, Replaced By: A6732901016, +001A6742900093
32
PEDAL ,5 219888, Replaced By: A6732900816, +001A6742900093
32
PEDAL CLUTCH,5 219889
35
PAD BRAKE
38
NEEDLE BEARING CLUTCH PEDAL
38
NEEDLE BEARING CLUTCH PEDAL
41
SPACER TUBE CLUTCH PEDAL
44
WASHER CLUTCH PEDAL TO BEARING BRACKET
47
PIN CLUTCH PEDAL TO BEARING BRACKET
50
LOCK , Replaced By: A6732920073
50
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
53
SCREW , Replaced By: N304017006016
53
SCREW PUMP TO BRACKET
56
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
59
PIN CLUTCH PEDAL RESET
62
SPRING RETAINER CLUTCH PEDAL RESET
65
SPRING CLUTCH PEDAL RESET
68
SPRING RETAINER CLUTCH PEDAL RESET
71
ROD CLUTCH PEDAL RESET,5 219288
74
NUT
77
REPAIR KIT DEAD CENTER SPRING,5 219889
80
STOP CLUTCH PEDAL RESET,5 219889
80
STOP CLUTCH PEDAL RESET,5 219888
83
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
83
LOCK PLATE RELEASE LEVER TO SHAFT
86
WASHER RADIATOR TO RUBBER MOUNTING
86
WASHER , Replaced By: N000125010532
89
STOP BRAKE PEDAL
92
SCREW , Replaced By: N304017006018
92
SCREW COVER PLATE TO COVER PLATE M 6 X 12
95
STOP BRAKE PEDAL
98
PEDAL BRAKE
98
PEDAL BRAKE
101
PAD BRAKE
104
BUSHING , Replaced By: A1242920050
107
PIN BRAKE PEDAL TO BEARING BRACKET
110
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
113
SCREW PUMP TO BRACKET
113
SCREW , Replaced By: N304017006016
116
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
119
ROD TWO-CIRCUIT-BRAKE-VALVE CONTROL
122
YOKE OPERATING ROD,K 202311
125
NUT
125
NUT , Replaced By: N304035008001
128
PIN ROD TO BRAKE PEDAL
131
WASHER BRACKET TO CROSS MEMBER
134
COTTER PIN LEVER TO ROD
134
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
137
SPRING BRAKE PEDAL RELEASE SPRING
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
ROD CLUTCH PEDAL RESET
