Поз.
Артикул
Описание

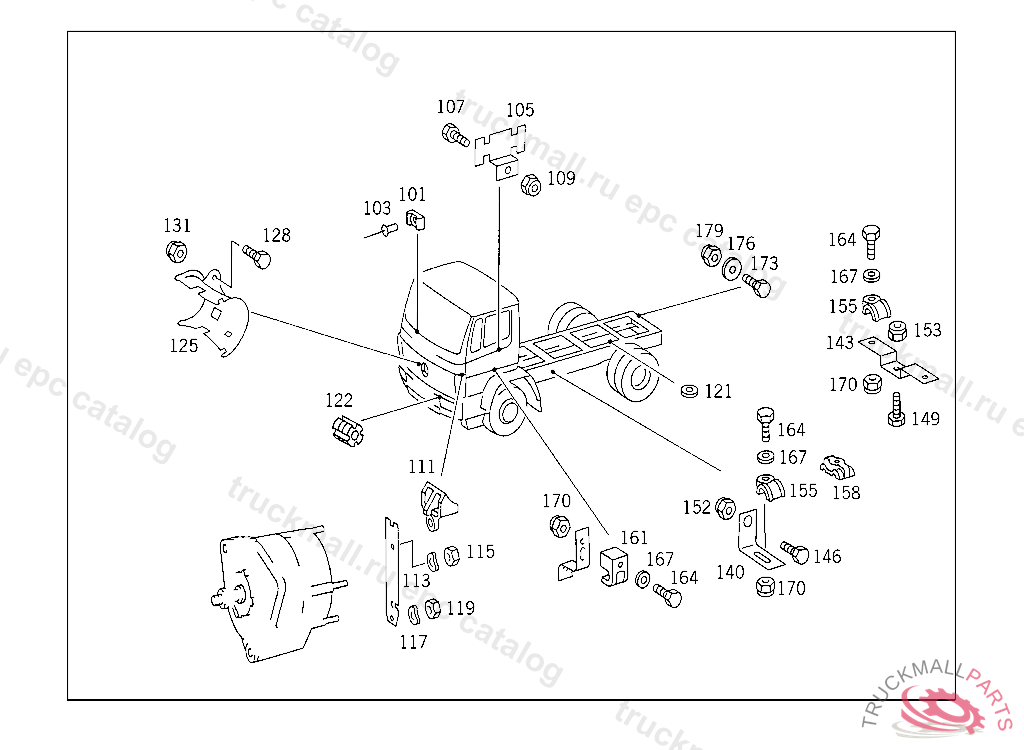

101
BRACKET FRAME MOUNTED CABLE HARNESS TO CAB
103
RIVET BRACKET TO CAB
105
BRACKET BREATHER LINE TO SIDE MEMBER
107
SCREW BRACKET TO CROSS CONNECTION STRUT
107
SCREW , Replaced By: N304017008034
109
NUT , Replaced By: N913004008001
111
BRACKET CABLE HARNESS MOUNTING
111
BRACKET , Replaced By: A0005462243
113
SPRING WASHER ALTERNATOR CONNECTION D+
115
NUT TACHOGRAPH TO BRACKET
117
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
117
SPRING WASHER , Replaced By: N000137008212
117
SPRING WASHER , Replaced By: N000137008204
117
SPRING WASHER ALTERNATOR CONNECTION W
117
SPRING WASHER ALTERNATOR CONNECTION D+
117
SPRING WASHER HEATER PLUG CABLE HARNESS
117
SPRING WASHER ELECTRIC CABLE TO ALTERNATOR
119
NUT
119
NUT BALL PIVOT TO LEVER
119
NUT TACHOGRAPH TO BRACKET
119
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
121
WASHER EXHAUST MUFFLER TO STRAP
121
WASHER , Replaced By: N000125008443
122
BRACKET LINE MOUNTING
122
BRACKET LINE MOUNTING
125
BRACKET CABLE HARNESS
128
SCREW END PIECE TO EXHAUST PIPE M 10X25
131
NUT STRAP TO BRACKET
131
NUT , Replaced By: N910113010000
140
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
140
BRACKET , Replaced By: A6735460443
143
BRACKET BATTERY CABLE TO CROSS MEMBER
146
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
146
SCREW , Replaced By: N308676012012
146
SCREW BRACKET TO SIDE MEMBER
149
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
149
SCREW , Replaced By: N304017008027
152
NUT SUPPORT TO SIDE MEMBER
152
NUT STRAP TO BRACKET
152
NUT , Replaced By: N910113010000
153
NUT STRAP TO BRACKET
155
CLAMP CABLE HARNESS TO BRACKET
155
CLAMP CABLE HARNESS TO BRACKET
155
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
158
CLAMP , Replaced By: A0005462675
161
CLAMP BATTERY CABLE MOUNTING,5 143360
164
SCREW , Replaced By: N304017006026
164
SCREW , Replaced By: N304017006026
164
SCREW , Replaced By: N304017006026
167
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
167
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
170
NUT PUMP TO BRACKET
170
NUT PUMP TO BRACKET
170
NUT , Replaced By: N913004006001
173
SCREW PIPE CLAMP
173
SCREW , Replaced By: N304017008021
176
WASHER BRACKET TO LEFT SIDE MEMBER
176
WASHER , Replaced By: N009021008213
179
NUT , Replaced By: N913004008001
999
FLEXIBLE METAL TUBE. ELECTRIC CABLE FROM TACHOGRAPH TO PULSE TRANSMITTER,K 164870
999
ELECTRIC CABLE FROM TACHOGRAPH TO PULSE TRANSMITTER,K 164870
999
CABLE HARNESS FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR,K 180894
