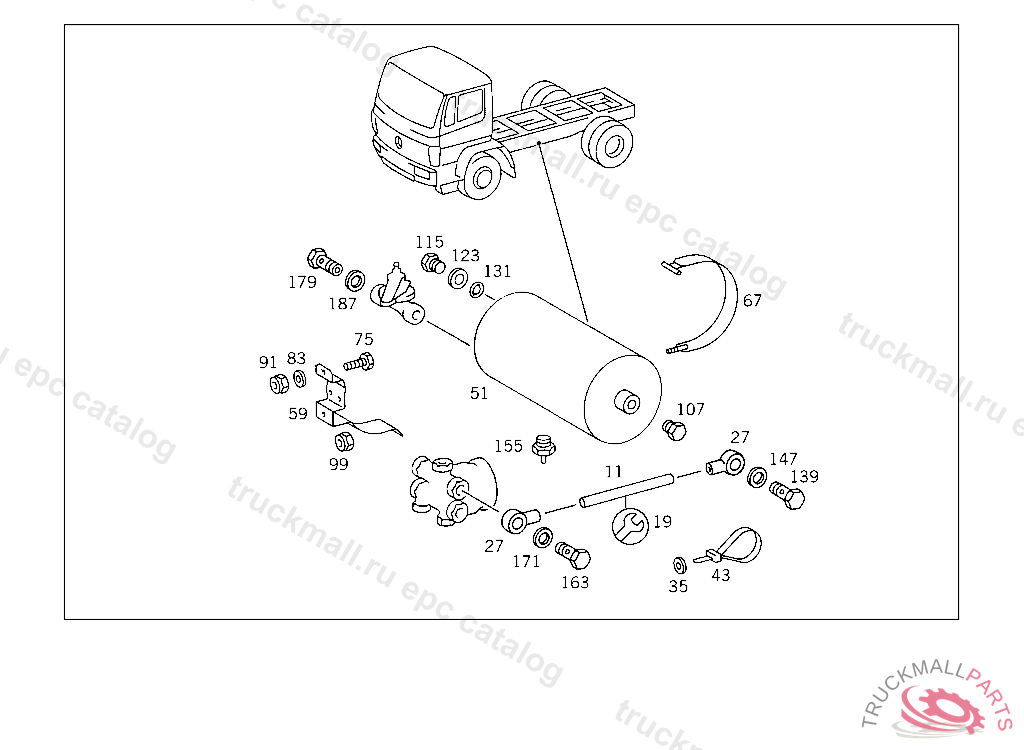

Поз.
Артикул
Описание
11
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
11
HOSE , Replaced By: A0009872827
19
FITTING , Replaced By: A0029906171
19
FITTING (PARTS KIT),LINE RUPTURE
27
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
35
WASHER EXHAUST MUFFLER TO STRAP
35
WASHER , Replaced By: N000125008443
43
LOOM TIE LINE MOUNTING
51
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
51
RESERVOIR10L,206 MM,8.5 BAR
59
BRACKET CLUTCH BOOSTER AIR RESERVOIR
67
STRAP AIR RESERVOIR TO BRACKET
67
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
75
SCREW BRACKET TO LEFT SIDE MEMBER
83
WASHER BRACKET TO FRAME
91
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
99
NUT , Replaced By: N910113010000
99
NUT STRAP TO BRACKET
107
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
115
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
123
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
131
O-RING CHECK VALVE TO AIR RESERVOIR
139
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
147
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
155
VALVE. DRAIN VALVE DRAIN
155
VALVE DRAIN, Replaced By: A0004322407
155
VALVE DRAIN, Replaced By: A0004322107
163
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
171
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
179
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
187
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SCREW. UNION SCREW LINE CONNECTION
999
CONNECTOR RELEASE BEARING LUBRICATION
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SEAL RING CONNECTOR 11.8X2 MM
999
CONNECTOR , Replaced By: A0019904078
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
