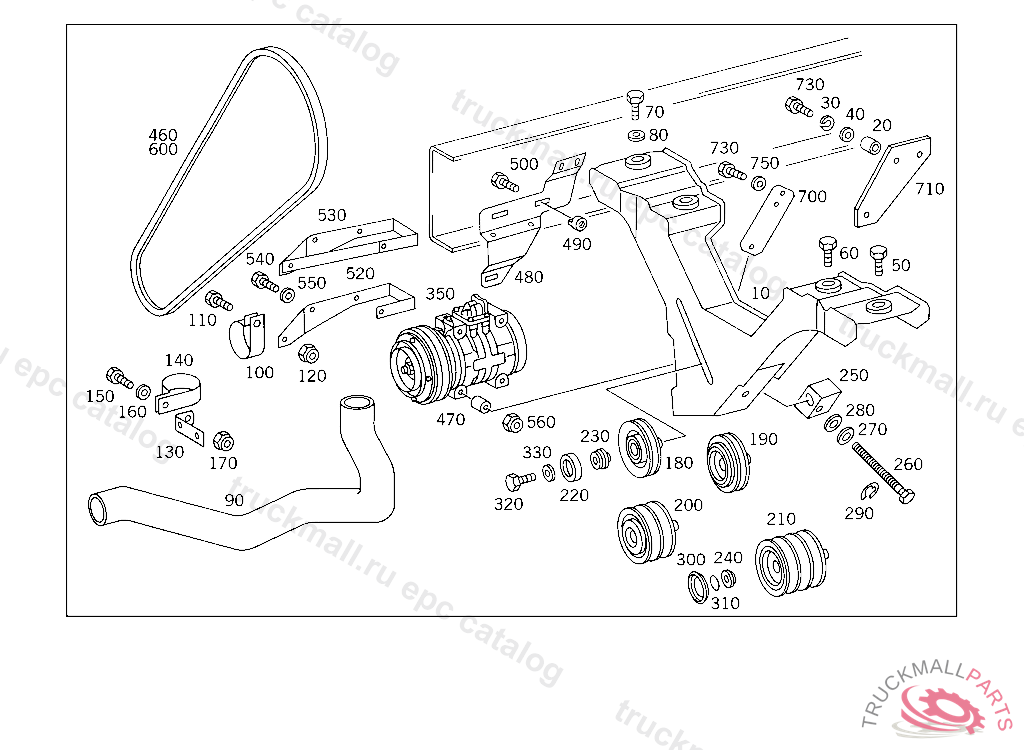

Поз.
Артикул
Описание
10
ENGINE SUPPORT ENGINE FRONT SUSPENSION
10
ENGINE SUPPORT ENGINE FRONT SUSPENSION
20
SPACER RING EXHAUST PIPE BRACKET TO BELL HOUSING
30
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
30
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
40
WASHER EXHAUST MUFFLER TO STRAP
40
WASHER EXHAUST MUFFLER TO STRAP
40
WASHER , Replaced By: N000125008443
50
SCREW ENGINE TO ENGINE FRONT SUPPORT
50
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 14X60
60
SCREW ENGINE TO ENGINE FRONT SUPPORT
70
SCREW REAR EXHAUST PIPE TO MUFFLER
70
SCREW END PIECE TO EXHAUST PIPE M 10X25
70
SCREW REAR EXHAUST PIPE TO MUFFLER
70
SCREW END PIECE TO EXHAUST PIPE M 10X25
80
WASHER STRUT TO CROSS MEMBER
80
WASHER STRUT TO CROSS MEMBER
80
WASHER , Replaced By: N007349010007
90
HOSE FROM RADIATOR TO OIL COOLER,K 053730
90
HOSE FROM RADIATOR TO OIL COOLER,K 053730
90
HOSE FROM RADIATOR TO OIL COOLER,5 422711
90
HOSE , Replaced By: A6765011282
90
HOSE , Replaced By: A6765010782
100
CLAMP HOSE
100
CLAMP HOSE
110
SCREW COVER PLATE TO BRACKET
110
SCREW , Replaced By: N304017006018
110
SCREW COVER PLATE TO COVER PLATE M 6 X 12
120
NUT , Replaced By: N913004006001
120
NUT PUMP TO BRACKET
130
BRACKET COOLING WATER LINE,5 4227125 484924
130
BRACKET , Replaced By: A6765010320
130
BRACKET , Replaced By: A6765010620
130
BRACKET COOLING WATER LINE,5 4227125 484924
140
CLAMP HOSE TO BRACKET,5 4227125 484924
140
CLAMP HOSE TO BRACKET,5 4227125 484924
150
SCREW , Replaced By: N304017008021
150
SCREW PIPE CLAMP
160
WASHER , Replaced By: N000125008443
160
WASHER EXHAUST MUFFLER TO STRAP
170
NUT , Replaced By: N913004008001
170
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
180
TIGHTENER PULLEY ,5 345185
190
TIGHTENER PULLEY
190
TIGHTENER PULLEY
200
TIGHTENER PULLEY ,5 345185
210
TIGHTENER PULLEY ,5 345186
210
TIGHTENER PULLEY ,5 345186
210
TIGHTENER PULLEY
220
BEARING COVER TIGHTENER PULLEY TO SUPPORT,5 345185
220
BEARING COVER TIGHTENER PULLEY TO SUPPORT,5 345185
230
SPACER WASHER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 345185, Replaced By: A6735520252
230
SPACER WASHER TIGHTENER PULLEY TO SUPPORT
230
SPACER WASHER TIGHTENER PULLEY TO SUPPORT,5 345185
240
SPACER WASHER TIGHTENER PULLEY TO SUPPORT
240
SPACER WASHER
240
SPACER WASHER TIGHTENER PULLEY TO SUPPORT
250
THREADED UNION TIGHTENER PULLEY TO SUPPORT
260
SCREW TIGHTENER PULLEY TO SUPPORT
270
WASHER BRACKET TO SIDE MEMBER
270
WASHER BRACKET TO SIDE MEMBER
280
FITTED WASHER TIGHTENER PULLEY TO SUPPORT
280
FITTED WASHER TIGHTENER PULLEY TO SUPPORT
290
LOCK PLATE INTERMEDIATE BEARING
290
LOCK PLATE INTERMEDIATE BEARING
300
CAP
300
CAP , Replaced By: A3661320385
300
CAP
300
CAP
310
SEAL RING PULLEY
310
SEAL RING PULLEY
320
SCREW , Replaced By: N304014010004
320
HEXAGON HEAD BOLT CLAMP TO EXHAUST PIPE
320
SCREW , Replaced By: N304017010055
320
HEXAGON HEAD BOLT CLAMP TO EXHAUST PIPE
320
SCREW , Replaced By: N304017010055
320
SCREW , Replaced By: N304017010050
330
WASHER BRACKET TO COVERING
330
WASHER , Replaced By: N009021010209
350
COUPLING
350
COMPRESSOR
350
COMPRESSOR , Replaced By: A0002304211
460
V-BELT12.5X1175
460
V-BELT12.5X1175
460
V-BELT , Replaced By: A0069972092
460
V-BELT ,5 345185
470
BUSHING COMPRESSOR TO SUPPORT
470
BUSHING COMPRESSOR TO SUPPORT
470
BUSHING COMPRESSOR TO SUPPORT,5 2817225 484924
470
SPACER TUBE COMPRESSOR TO SUPPORT,5 484925
470
SPACER TUBE COMPRESSOR TO SUPPORT,5 484925
470
BUSHING , Replaced By: A4409910440
470
BUSHING COMPRESSOR TO SUPPORT,5 484924
480
PLATE COMPRESSOR TO SUPPORT
480
PLATE COMPRESSOR TO SUPPORT
480
PLATE COMPRESSOR TO SUPPORT
490
THREADED UNION COMPRESSOR TO SUPPORT
490
THREADED UNION COMPRESSOR TO SUPPORT
500
SCREW PIPE CLAMP
500
SCREW PIPE CLAMP
500
SCREW , Replaced By: N304017008021
520
BRACKET COMPRESSOR TO SUPPORT,5 281721
530
BRACKET COMPRESSOR TO SUPPORT
530
BRACKET COMPRESSOR TO SUPPORT
540
SCREW VALVE TO CAB M 8X85
540
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
540
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
540
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
540
SCREW , Replaced By: N304014008021
550
WASHER EXHAUST MUFFLER TO STRAP
550
WASHER , Replaced By: N000125008443
560
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
560
NUT , Replaced By: N913004008001
600
V-BELT HYDRAULIC PUMP
600
V-BELT HYDRAULIC PUMP,5 345185
600
V-BELT , Replaced By: A0029979892
600
V-BELT HYDRAULIC PUMP
700
PLATE HYDRAULIC PUMP,5 334430
710
BRACKET HYDRAULIC PUMP,5 484925
710
BRACKET HYDRAULIC PUMP,5 484925
730
SCREW BRACKET TO CROSS CONNECTION STRUT
730
SCREW BRACKET TO CROSS CONNECTION STRUT
730
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
730
SCREW , Replaced By: N304017008016
730
SCREW BRACKET TO CROSS CONNECTION STRUT
730
SCREW BRACKET TO CROSS CONNECTION STRUT
730
SCREW , Replaced By: N304017008034
750
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
750
WASHER EXHAUST MUFFLER TO STRAP
750
WASHER , Replaced By: N000125008443
750
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
COUPLING
999
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
999
ENGINE CROSS MEMBER FRONT BOTTOM
999
ENGINE CROSS MEMBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 278970, Replaced By: A6753100126
999
ENGINE CROSS MEMBER FRONT
999
INTERMEDIATE PIECE CROSS MEMBER AND ENGINE MOUNTING TO CONSOLE
999
HOSE FROM WATER PUMP TO RADIATOR
