Поз.
Артикул
Описание

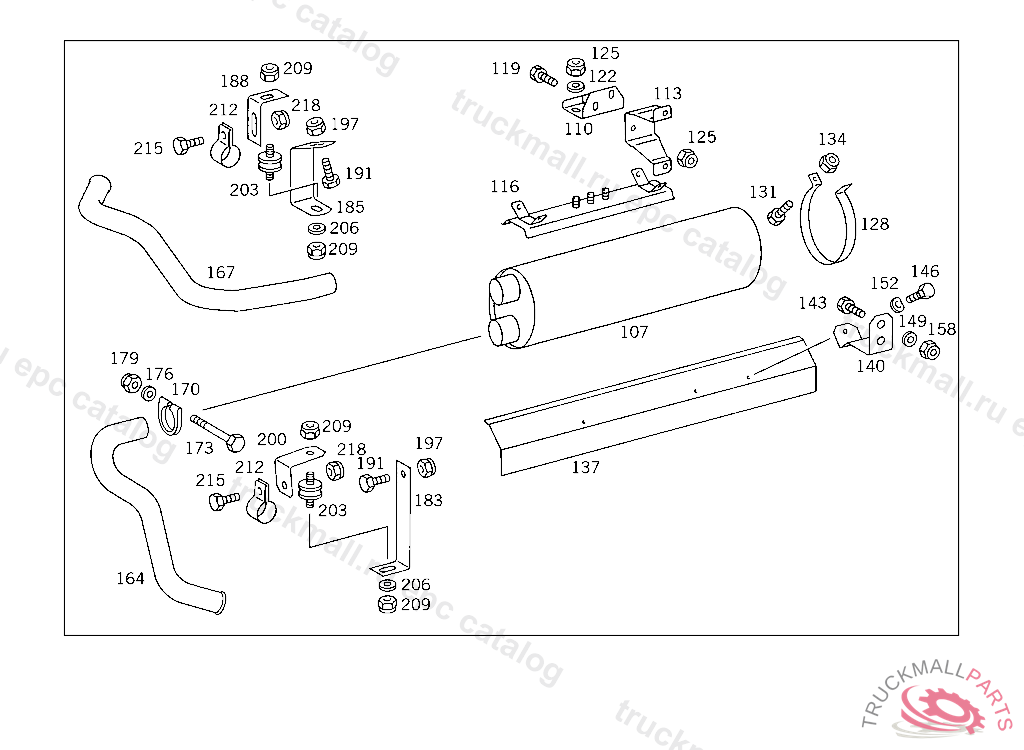

110
BRACKET EXHAUST MUFFLER TO BRACKET
110
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. K 139807, Replaced By: A6744924841
113
BRACKET EXHAUST MUFFLER
116
SUPPORT EXHAUST MUFFLER TO BRACKET
119
SCREW BRACKET TO SIDE MEMBER
119
SCREW , Replaced By: N304017010002
122
WASHER , Replaced By: N007349010007
122
WASHER STRUT TO CROSS MEMBER
125
NUT STRAP TO BRACKET
125
NUT , Replaced By: N910113010000
128
BRACKET , Replaced By: A6744914541
128
STRAP EXHAUST MUFFLER TO SIDE MEMBER
131
SCREW BRACKET TO SIDE MEMBER
134
NUT STRAP TO BRACKET
134
NUT , Replaced By: N910113010000
137
PROTECTIVE PLATE , DISCONTINUED,PART IS NO LONGER REQUIRED
140
BRACKET HEAT SHIELD TO FRAME, DISCONTINUED,PART IS NO LONGER REQUIRED
143
SCREW CONSOLE TO SIDE MEMBER
146
SCREW REDUCTION VALVE TO BRACKET
146
SCREW , Replaced By: A0079900801
149
WASHER BRACKET TO FRAME
152
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
152
SPRING WASHER , Replaced By: N000137008212
158
NUT SUPPORT TO SIDE MEMBER
170
CLAMP BRACKET TO EXHAUST PIPE
173
SCREW , Replaced By: N304014008021
173
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
176
WASHER , Replaced By: N000125008443
176
WASHER EXHAUST MUFFLER TO STRAP
179
NUT , Replaced By: N913004008001
999
SCREW PROTECTIVE PLATE TO CLAMP
999
SCREW COVERING TO SUPPORT
999
PROTECTIVE PLATE , NOT USED
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 227991, Replaced By: A6764902640
999
BRACKET HEAT SHIELD
999
WASHER HEAT SHIELD TO BRACKET
