Поз.
Артикул
Описание

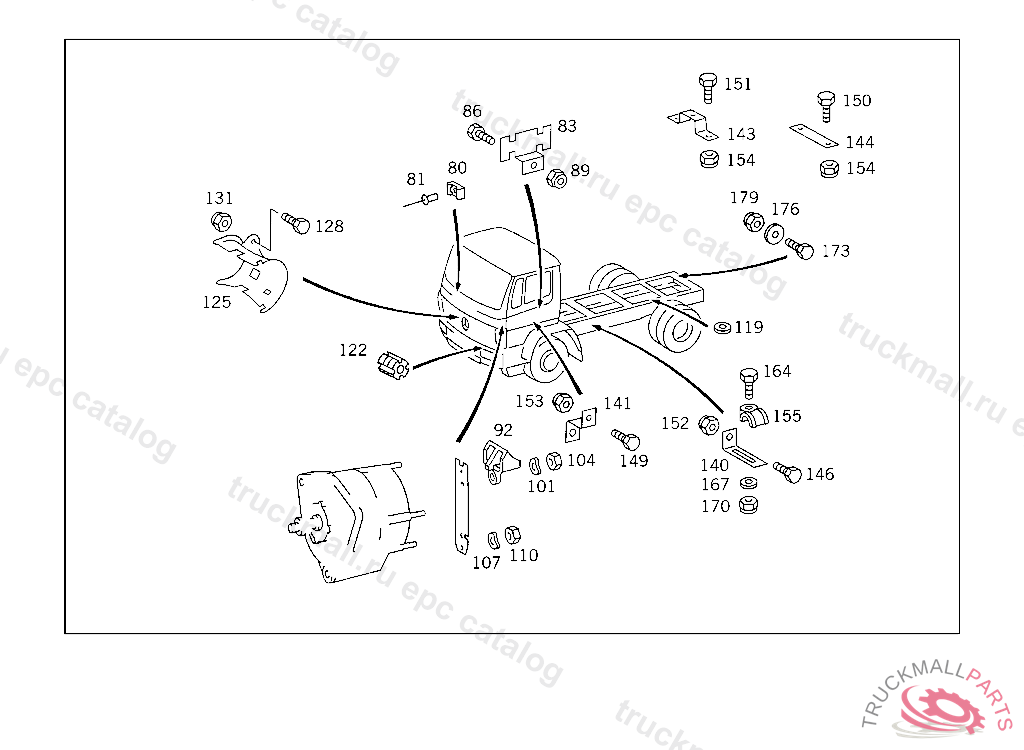

80
BRACKET FRAME MOUNTED CABLE HARNESS TO CAB
81
RIVET BRACKET TO CAB
83
BRACKET BREATHER LINE TO SIDE MEMBER
86
SCREW CLAMP TO BRACKET,5 597426
86
SCREW , Replaced By: N910142008009
89
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
89
NUT , Replaced By: N913004008001
89
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
92
BRACKET CABLE HARNESS MOUNTING
101
SPRING WASHER ALTERNATOR CONNECTION D+
104
NUT BOOT
107
SPRING WASHER ELECTRIC CABLE TO ALTERNATOR
107
SPRING WASHER ALTERNATOR CONNECTION W
107
SPRING WASHER ALTERNATOR CONNECTION D+
107
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
107
SPRING WASHER HEATER PLUG CABLE HARNESS
107
SPRING WASHER , Replaced By: N000137008204
107
SPRING WASHER , Replaced By: N000137008212
110
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
110
NUT BALL SOCKET TO ROD
110
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
110
NUT BOOT
119
WASHER EXHAUST MUFFLER TO STRAP
119
WASHER , Replaced By: N000125008443
122
BRACKET LINE MOUNTING
125
BRACKET CABLE HARNESS
128
SCREW END PIECE TO EXHAUST PIPE M 10X25
131
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
131
NUT , Replaced By: N913023010002
140
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
141
BRACKET BATTERY CABLE TO FRAME
143
BRACKET BATTERY CABLE TO CROSS MEMBER
144
BRACKET BATTERY CABLE TO CROSS MEMBER
146
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
146
SCREW , Replaced By: N910105010009
149
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
150
SCREW BRACKET TO FRAME M 8X35
151
SCREW BRACKET TO BRACKET
151
SCREW , Replaced By: N910142008001
152
NUT EXHAUST PIPE TO SIDE MEMBER
153
NUT STRAP TO SUPPORT
154
NUT BRACKET TO BRACKET
155
CLAMP ELECTRIC CABLE MOUNTING
164
SCREW ELECTRIC CABLE TO BRACKET
167
WASHER COMPRESSED AIR LINE TO BRACKET
167
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
170
NUT AT FILTER BRACKET
173
SCREW END PIECE TO EXHAUST PIPE M 10X25
173
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
173
SCREW , Replaced By: N910105010009
176
WASHER , Replaced By: N009021010209
176
WASHER BRACKET TO COVERING
179
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
179
NUT , Replaced By: N913023010002
999
BRACKET BATTERY CABLE TO CROSS MEMBER
999
ELECTRIC CABLE FROM CHASSIS/CAB PLUG CONNECTION TO TELL-TALE LAMP,K 203492
999
ELECTRIC CABLE FROM CHASSIS/CAB PLUG CONNECTION TO TELL-TALE LAMP,K 203492
