Поз.
Артикул
Описание

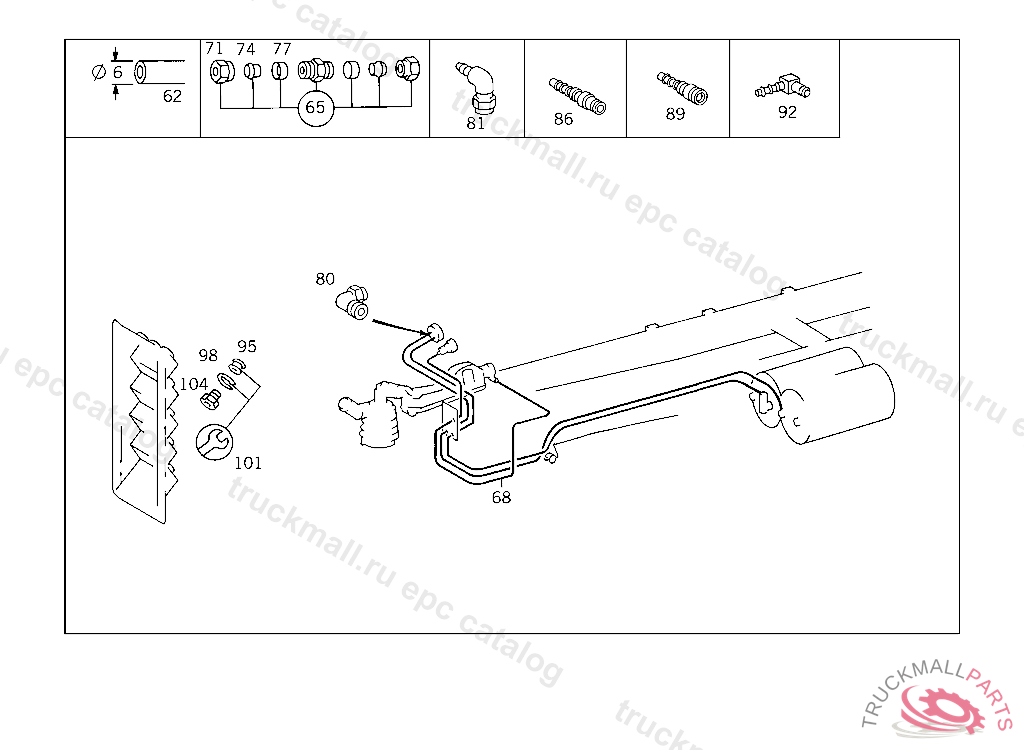

62
PLASTIC PIPE RISING PIPE 4X6 MM
65
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
68
HOSE LEAK LINE, ORDER BY THE METER
71
UNION NUT
74
GLAND , Replaced By: A0019901667
74
SEAL CONE
77
SLEEVE LEAK LINE
80
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
80
FITTING FROM PUMP TO CYLINDER
81
ELBOW FITTING
86
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
89
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
92
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
92
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
95
SEAL RING , Replaced By: A0009940747
95
LOCK RING LINE CONNECTION
98
LOCK LINE CONNECTION
98
LOCK , Replaced By: A0009945448
101
REPAIR KIT , Replaced By: A0309971748
101
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
104
SCREW. UNION SCREW , Replaced By: A0009973734
104
SCREW. UNION SCREW LINE CONNECTION
