Поз.
Артикул
Описание

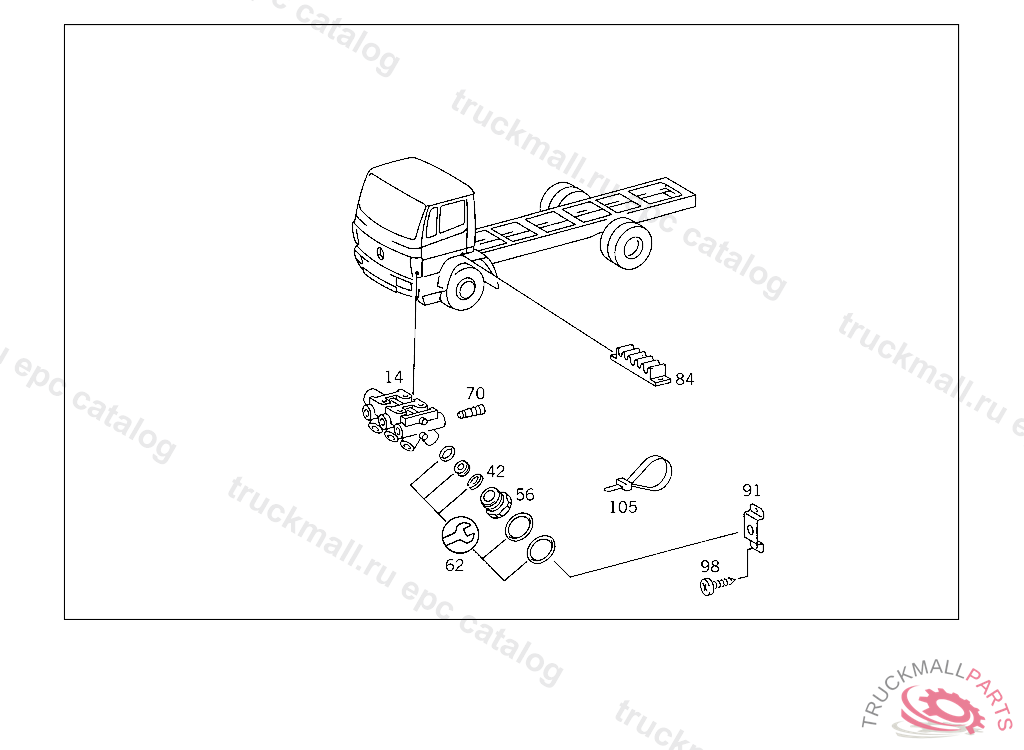

14
DISTRIBUTOR
42
LOCK LINE CONNECTION
42
LOCK , Replaced By: A0009945448
56
SCREW. UNION SCREW , Replaced By: A0009973734
56
SCREW. UNION SCREW LINE CONNECTION
62
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
62
REPAIR KIT , Replaced By: A0309971748
70
PLUG DISTRIBUTOR,CONNECTIONS: "03,04,05",TO M 16,5 766894
84
CLAMPING RAIL COMPRESSED AIR LINES,5 181196 TO BE ADAPTED DURING ASSEMBLY
84
CLAMPING RAIL ,5 181196, Replaced By: A6739950057
91
BRACKET COMPRESSED AIR LINE MOUNTING,5 181197
98
SHEET METAL SCREW , Replaced By: N000000000459
98
SHEET METAL SCREW , Replaced By: N007981004339
98
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
105
LOOM TIE LINE MOUNTING
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
NUT SUPPORT TO SIDE MEMBER
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW , Replaced By: A0079900801
999
SCREW CONNECTOR
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER , Replaced By: N000137008212
999
BRACKET HEAT SHIELD TO FRAME, DISCONTINUED,PART IS NO LONGER REQUIRED
999
PROTECTIVE PLATE , DISCONTINUED,PART IS NO LONGER REQUIRED
999
WASHER BRACKET TO FRAME
999
BRACKET DISTRIBUTOR TO FRAME SIDE MEMBER
999
SCREW REDUCTION VALVE TO BRACKET
999
LOCK RING LINE CONNECTION
999
SEAL RING , Replaced By: A0009940747
999
DISTRIBUTOR ENGINE SHUT-OFF,5 766894
