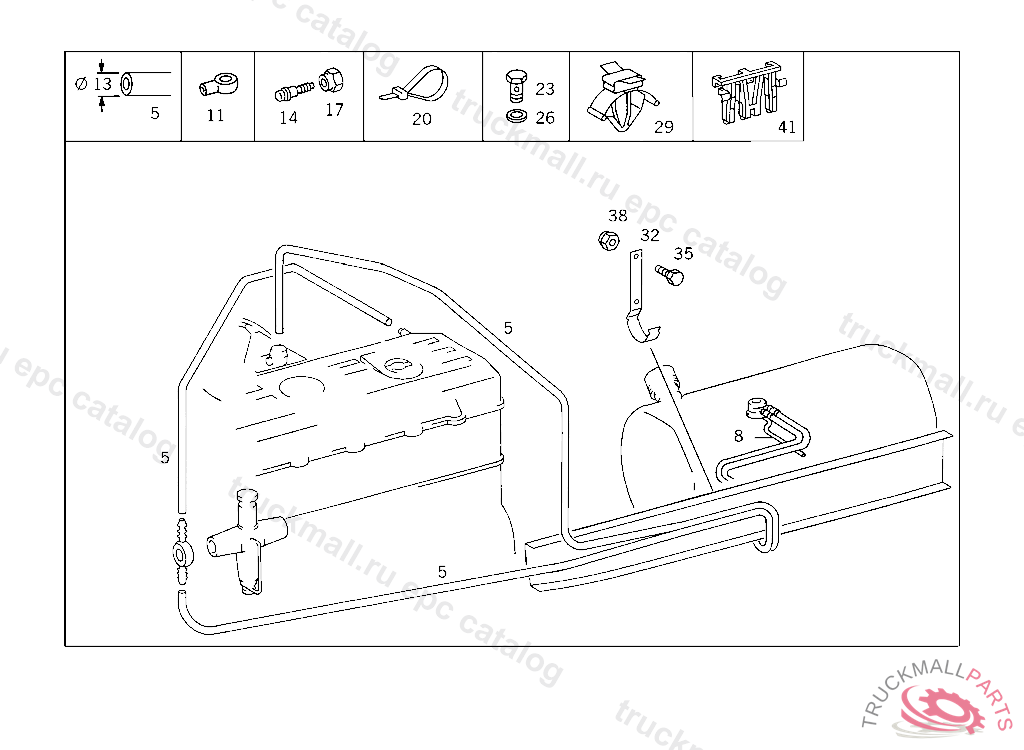

Поз.
Артикул
Описание
5
HOSE. PLASTIC PIPE , Replaced By: A0139971282
8
PLASTIC PIPE AERATION, ORDER BY THE METER
11
BANJO UNION HOSE WIDTH, / I.D., 10/14 MM
11
BANJO UNION , Replaced By: N000000000362
14
FITTING RETURN LINE,K 169122
17
UNION NUT RETURN LINE
20
LOOM TIE LINE MOUNTING 280 MM
20
LOOM TIE LINE MOUNTING
23
HOLLOW SCREW FUEL LINE TO FEED PUMP
23
HOLLOW SCREW , Replaced By: N915036010108
26
SEAL RING FUEL LINE TO FEED PUMP
29
BRACKET HOSE BRACKET
32
BRACKET FRAME MOUNTED CABLE HARNESS
35
SCREW BRACKET TO SUPPORT
38
NUT STRAP TO SUPPORT
41
LOCK FUEL GAUGE SENDER UNIT CONNECTION
999
PLASTIC PIPE RISING PIPE 4X6 MM
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
999
CONNECTOR FEED LINE AND RETURN LINE 12,5X1,25 MM
