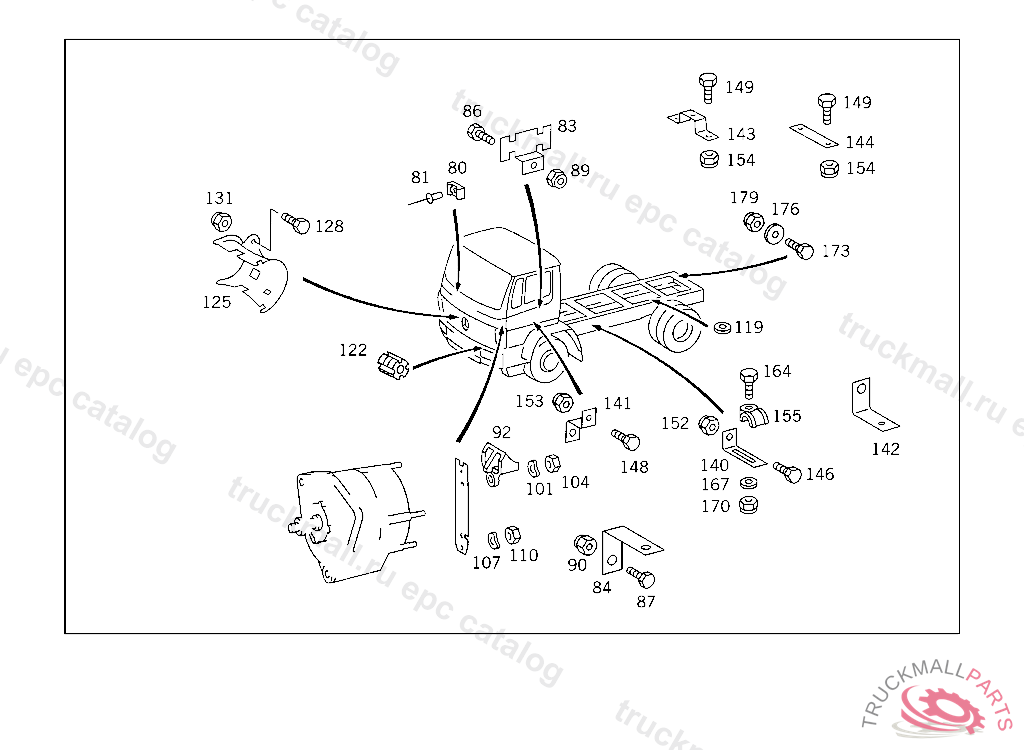

Поз.
Артикул
Описание
80
BRACKET FRAME MOUNTED CABLE HARNESS TO CAB
81
RIVET BRACKET TO CAB
83
BRACKET BREATHER LINE TO SIDE MEMBER
84
BRACKET FRAME MOUNTED CABLE HARNESS
86
SCREW , Replaced By: N910142008009
86
SCREW CLAMP TO BRACKET,5 597426
87
SCREW EXHAUST PIPE TO BRACKET
89
NUT BRACKET TO BRACKET
90
NUT STRAP TO SUPPORT
92
BRACKET CABLE HARNESS MOUNTING
101
SPRING WASHER ALTERNATOR CONNECTION D+
104
NUT , Replaced By: N304032005005
104
NUT IN CASE OF SUBSEQUENT INSTALLATION
107
SPRING WASHER ELECTRIC CABLE TO ALTERNATOR
107
SPRING WASHER HEATER PLUG CABLE HARNESS
107
SPRING WASHER ALTERNATOR CONNECTION D+
107
SPRING WASHER LICENSE PLATE TO BRACKET
107
SPRING WASHER , Replaced By: N000137008204
107
SPRING WASHER , Replaced By: N000137008212
107
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
110
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
110
NUT BOOT
110
NUT BALL SOCKET TO ROD
110
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
119
WASHER , Replaced By: N000125008443
119
WASHER EXHAUST MUFFLER TO STRAP
122
BRACKET LINE MOUNTING
125
BRACKET CABLE HARNESS
128
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
131
NUT , Replaced By: N913023010002
131
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
140
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
141
BRACKET BATTERY CABLE TO FRAME
142
BRACKET BATTERY CABLE TO CROSS MEMBER
143
BRACKET BATTERY CABLE TO CROSS MEMBER
144
BRACKET BATTERY CABLE TO CROSS MEMBER
146
SCREW , Replaced By: N910105010009
146
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
148
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
149
SCREW BRACKET TO FRAME M 8X35
149
SCREW , Replaced By: N910142008001
149
SCREW BRACKET TO BRACKET
152
NUT , Replaced By: N913023010002
152
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
153
NUT STRAP TO SUPPORT
154
NUT BRACKET TO BRACKET
155
CLAMP ELECTRIC CABLE MOUNTING
164
SCREW ELECTRIC CABLE TO BRACKET
167
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
167
WASHER COMPRESSED AIR LINE TO BRACKET
170
NUT AT FILTER BRACKET
173
SCREW , Replaced By: N910142008001
173
SCREW BRACKET TO BRACKET
176
WASHER , Replaced By: N009021008213
176
WASHER BRACKET TO LEFT SIDE MEMBER
176
WASHER BRACKET TO CAB REAR PANEL
176
WASHER BRACKET TO LEFT SIDE MEMBER
176
WASHER BRACKET TO CAB REAR PANEL
179
NUT BRACKET TO BRACKET
999
ELECTRIC CABLE FROM CHASSIS/CAB PLUG CONNECTION TO TELL-TALE LAMP,K 203492
999
ELECTRIC CABLE FROM CHASSIS/CAB PLUG CONNECTION TO TELL-TALE LAMP,K 203492
