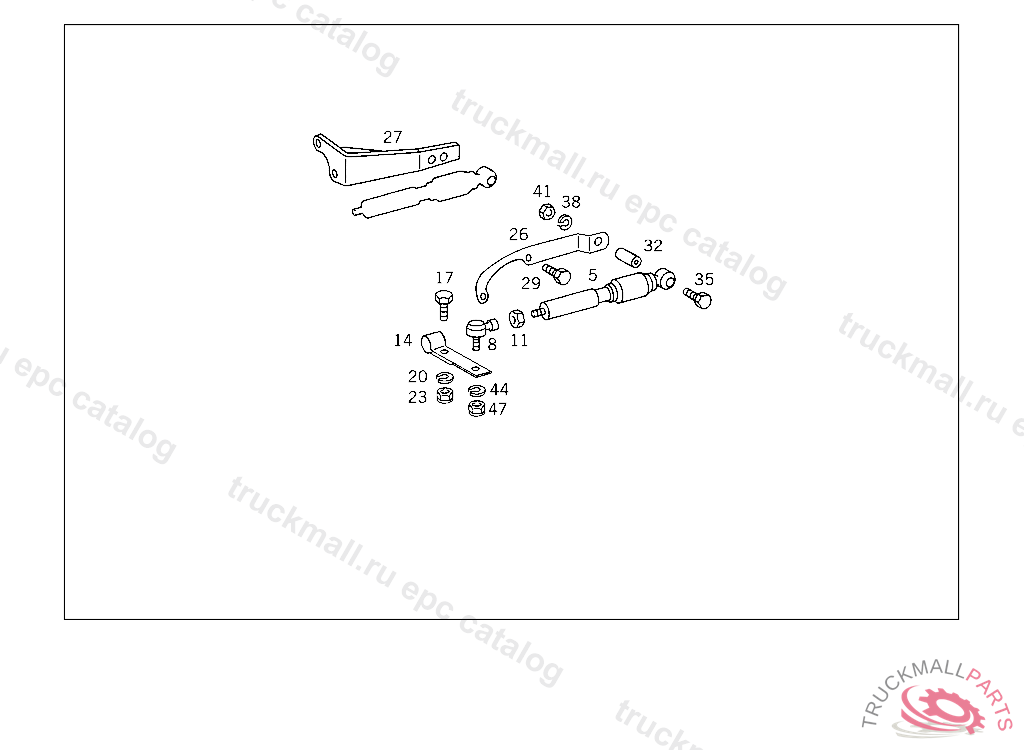

Поз.
Артикул
Описание
5
VIBRATION ABSORBER VIBRATION ABSORBER
8
JOINT VIBRATION ABSORBER
11
NUT
14
LEVER VIBRATION ABSORBER
14
LEVER VIBRATION ABSORBER
17
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
17
SCREW , Replaced By: N304017008016
17
SCREW BRACKET TO CONSOLE
17
SCREW , Replaced By: N304017010043
20
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
20
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
23
NUT BRACKET TO SUPPORT AND TO END PIECE
26
BRACKET VIBRATION ABSORBER
27
BRACKET VIBRATION ABSORBER
27
BRACKET VIBRATION ABSORBER
29
SCREW , Replaced By: N304017008034
29
SCREW BRACKET TO CROSS CONNECTION STRUT
32
SPACER TUBE VIBRATION ABSORBER TO BRACKET
35
SCREW MOUNTING AND RAIL TO LEAF SPRING
38
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
41
NUT , Replaced By: N308673010001
41
HEXAGON NUT. NUT PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE
44
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
47
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
