Поз.
Артикул
Описание

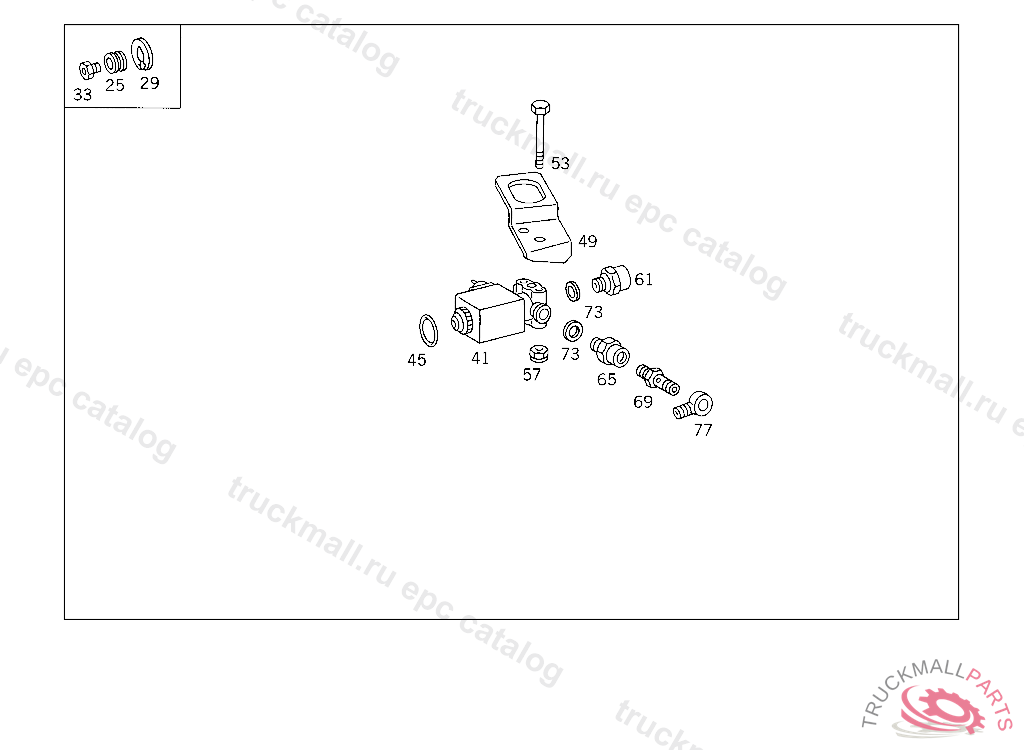

25
LOCK RING LINE CONNECTION
25
SEAL RING , Replaced By: A0009940747
29
LOCK , Replaced By: A0009945448
29
LOCK LINE CONNECTION
33
SCREW. UNION SCREW , Replaced By: A0009973734
33
SCREW. UNION SCREW LINE CONNECTION
41
VALVE (3/2-WAY SOLENOID VALVE) EKS
45
SEAL RINGWABCO
49
BRACKET 3/2-WAY SOLENOID VALVE,5 7668945 800001-5 806949
53
SCREW , Replaced By: N304017008043
53
SCREW VALVE TO BRACKET M 8X55
57
NUT , Replaced By: N913004008001
57
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
61
FITTING LINE CONNECTION
65
FITTING 3/2-WAY VALVE,CONNECTION: "20",5 7668945 800000-5 806949
65
FITTING 3/2-WAY SOLENOID VALVE,CONNECTION: "20",5 766895, 5 806950
69
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
69
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
73
SEAL RING LINE CONNECTION
73
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
77
BANJO UNION BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
77
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
SEAL RINGBOSCH
999
SEAL RINGBOSCH
999
GASKET KITKNORR
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
999
PROTECTIVE CAPWABCO
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
CONNECTOR , Replaced By: A0029905378
