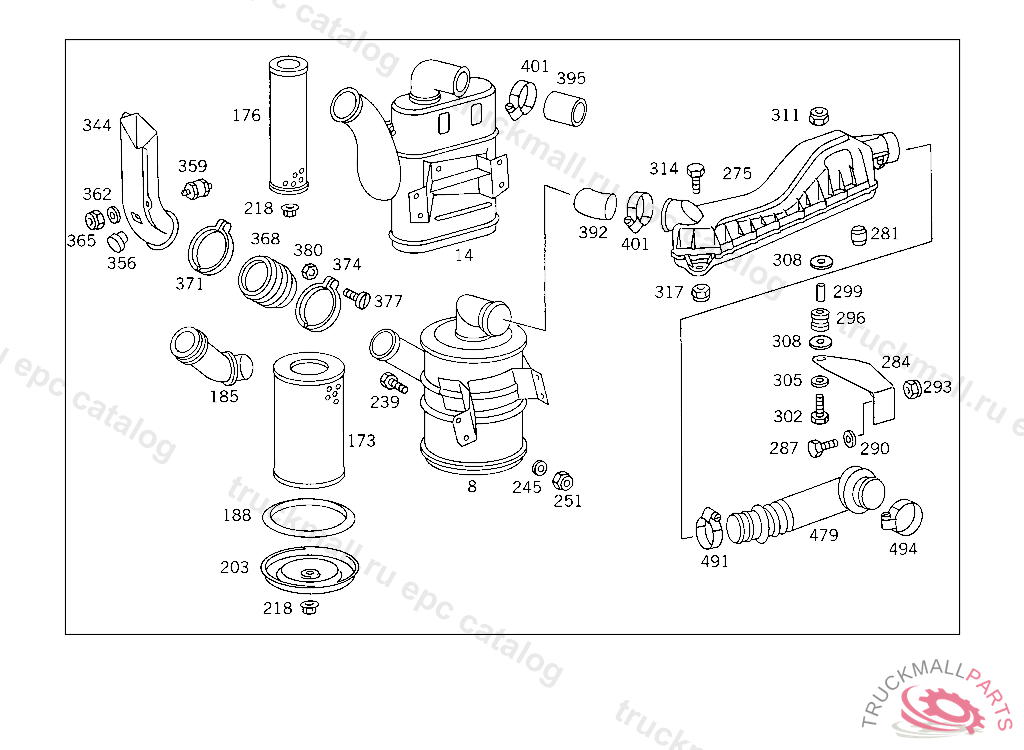

Поз.
Артикул
Описание
8
AIR CLEANERMANN & HUMMEL,5 586475
8
AIR CLEANER ,5 586474, Replaced By: A0160948402, +001A6795280040, +002N000125013008, +002N000961012151, +002N913004012008
8
AIR CLEANER ,5 586474, Replaced By: A0160948402, +001A6795280040, +002N000125013008, +002N000961012151, +002N913004012008
173
FILTER ELEMENT AIR CLEANER
176
FILTER ELEMENT
176
FILTER ELEMENT , Replaced By: A0010948204
185
INTAKE PIPEKNECHT
188
SEAL RING AIR CLEANER BOWL KNECHT
203
COVER LOWER PART
218
NUT AIR CLEANER ELEMENT
218
NUT
218
NUT , Replaced By: N913002010001
239
SCREW , Replaced By: N308676016020
239
SCREW CONSOLE TO FRAME
245
WASHER BRACKET TO FRAME
245
WASHER , Replaced By: N000125017016
251
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
251
NUT COMBINATION CYLINDER TO BEARING BRACKET
275
MUFFLER (INTAKE MUFFLER)
281
RUBBER MOUNTING BRACKET TO BEARING BRACKET
284
BRACKET INTAKE MUFFLER
284
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 494909, Replaced By: A6735282440
287
SCREW , Replaced By: N304017008021
287
SCREW PIPE CLAMP
290
WASHER EXHAUST MUFFLER TO STRAP
290
WASHER , Replaced By: N000125008443
293
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
293
NUT , Replaced By: N913004008001
293
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
296
RUBBER MOUNTING INTAKE MUFFLER TO BRACKET
299
SPACER TUBE PUMP TO FRAME SIDE MEMBER 12X21 MM
302
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
302
SCREW , Replaced By: N304017008040
302
SCREW BRACKET TO SIDE MEMBER
302
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
305
WASHER , Replaced By: N000125008443
305
WASHER EXHAUST MUFFLER TO STRAP
308
RETAINER INTAKE MUFFLER TO BRACKET
311
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
311
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
311
NUT , Replaced By: N913004008001
314
SCREW EXHAUST PIPE TO BRACKET
317
NUT STRAP TO BRACKET
317
NUT , Replaced By: N910113010000
344
AIR INTAKE PIPE
356
PLUG AIR INTAKE PIPE
359
BUFFER REFRIGERANT LINE TO CAB
359
BUFFER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6739880511
362
WASHER , Replaced By: N009021008213
362
WASHER BRACKET TO LEFT SIDE MEMBER
362
WASHER BRACKET TO CAB REAR PANEL
365
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
365
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
365
NUT , Replaced By: N913004008001
368
BOOT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 034532, Replaced By: A0005280091
368
BOOT AIR INTAKE
371
CLAMP BOOT TO INTAKE PIPE
374
CLAMP BOOT TO AIR CLEANER,K 034532
377
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER
380
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
392
HOSE TO OIL BATH AIR CLEANER
395
HOSE FROM AIR CLEANER TO MUFFLER, ORDER BY THE METER
401
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
479
HOSE FROM MUFFLER TO ENGINE
491
CLAMP , Replaced By: A0059972990
491
CLAMP , Replaced By: N000000000675
491
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
494
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
999
SEAL AIR INTAKE
999
BRACKET AT SIDE MEMBER
999
SCREW CONSOLE TO SIDE MEMBER
