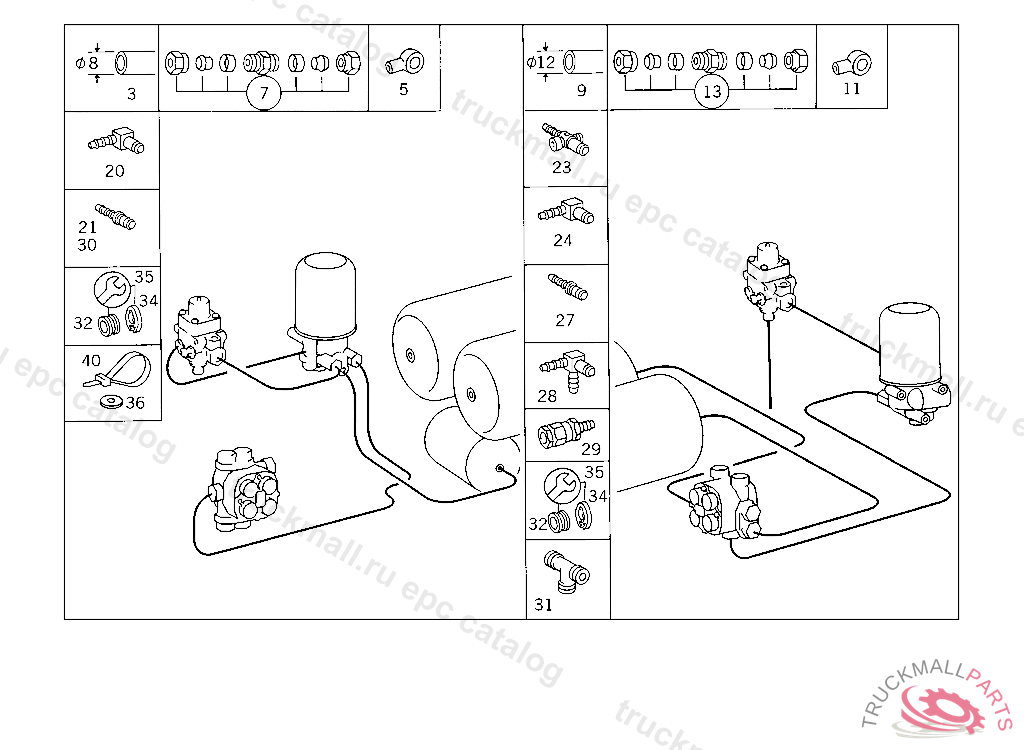

Поз.
Артикул
Описание
3
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
5
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
5
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
7
FITTING (PARTS KIT),LINE RUPTURE
7
FITTING , Replaced By: A0029905971
9
HOSE , Replaced By: A0009872827
9
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
11
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
11
BANJO UNION , Replaced By: N915052009009
13
FITTING , Replaced By: A0029906171
13
FITTING (PARTS KIT),LINE RUPTURE
20
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
20
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
20
ELBOW FITTING , Replaced By: A0049905371
21
CONNECTOR HOSE WIDTH, 6 MM,TO M16
21
CONNECTOR HOSE WIDTH, 6 MM, TO M22
21
CONNECTOR , Replaced By: A0029905478
23
DISTRIBUTOR LINE CONNECTION
24
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
27
CONNECTOR , Replaced By: A0029905478
27
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
27
CONNECTOR HOSE WIDTH, 6 MM,TO M16
27
CONNECTOR LINE CONNECTION
28
T-FITTING HOSE WIDTH, 6 MM
28
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
28
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
28
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION,5 9363665 812731
29
CONNECTOR HOSE WIDTH, 9 MM,TO M 16, NOT USED
30
CONNECTOR HOSE WIDTH, 6 MM,TO M16
30
CONNECTOR , Replaced By: A0029905478
30
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
31
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
32
LOCK RING LINE CONNECTION
32
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
32
SEAL RING , Replaced By: A0009940747
34
LOCK , Replaced By: A0009945448
34
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
34
LOCK LINE CONNECTION
35
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
35
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
35
REPAIR KIT , Replaced By: A0309971748
36
WASHER , Replaced By: A3609902340
36
WASHER BRACKET TO LEFT SIDE MEMBER
40
LOOM TIE LINE MOUNTING 280 MM
40
LOOM TIE LINE MOUNTING
999
BANJO UNION HEATING CONNECTION,K 169122
999
HOLLOW SCREW , Replaced By: N915036010108
999
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
SCREW VALVE TO BRACKET M 8X55
999
SCREW PUMP TO BRACKET
999
SCREW VALVE TO BRACKET
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RING LINE CONNECTION
999
SCREW , Replaced By: N304017006016
999
SCREW , Replaced By: N304017008043
999
SCREW VALVE TO BRACKET, Replaced By: N304014008002
999
BRACKET 3/2-WAY VALVE TO BRACKET,5 9363655 812730
999
SUPPORT FLUID RESERVOIR,5 287295SCHRAUBANSCHLUSS
999
BRACKET FLUID RESERVOIR,5 936365
999
BRACKET , Replaced By: A6764320240
999
BRACKET SOLENOID VALVE
999
SEAL RINGKNORR
999
SEAL RING , Replaced By: A0179978148
999
SEAL RING , Replaced By: A0005480870
999
SEAL RINGWABCO
999
FITTING LINE CONNECTION
999
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
999
VALVE (3/2-WAY SOLENOID VALVE) EKS
999
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
999
VALVE , Replaced By: A0049975736
999
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
GASKET KITKNORR
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION,K 186868
999
VALVE (PRESSURE LIMIT VALVE)
999
SEAL HOLDER SEAL RINGS KNORR
999
GASKET KIT SEAL RINGS KNORR,5 937586
999
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
999
RESERVOIR ,5 934167, Replaced By: A0034320301
999
RESERVOIR , Replaced By: A0034322001
999
RESERVOIR ,5 9363655 812730, Replaced By: A0034320301, +001A0009970834, +001A0059977672
999
RESERVOIR , Replaced By: A0024311602, +001A0004317833
999
PROTECTIVE CAPWABCO
999
SCREW. UNION SCREW LINE CONNECTION
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
HEATER , Replaced By: A0005480670
999
HEATER , Replaced By: A0005480870
999
ANTI-FREEZE DEVICEWABCO
999
AIR DEHYDRATOR"WABCO",5 9363665 812731
999
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
999
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
999
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
