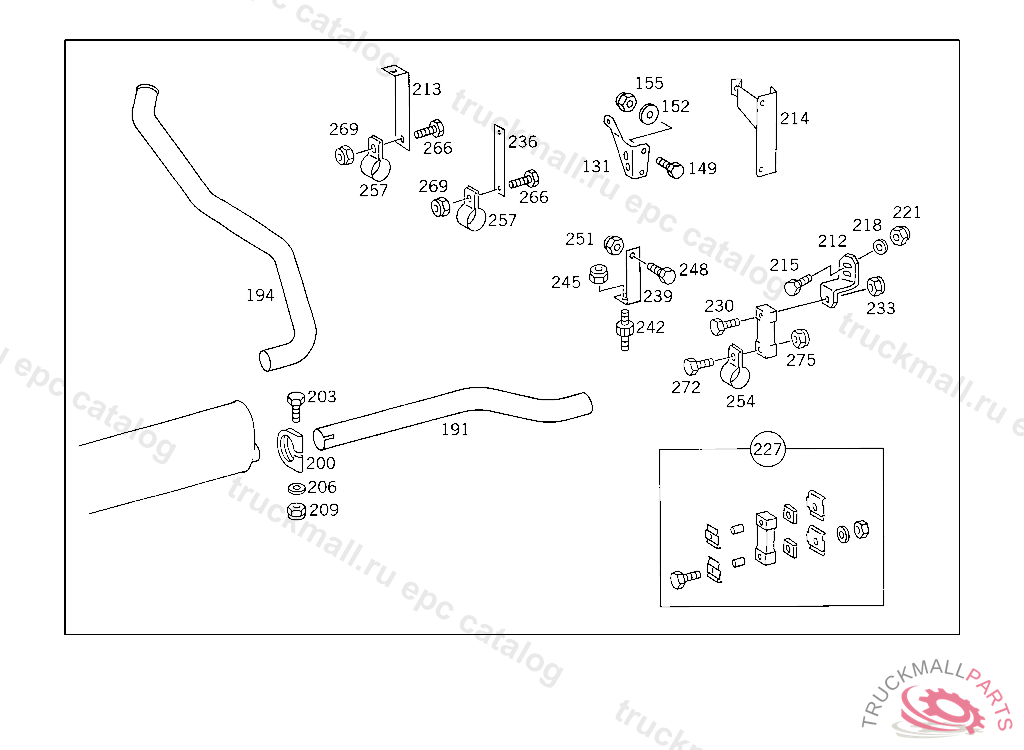

Поз.
Артикул
Описание
149
SCREW REAR EXHAUST PIPE TO MUFFLER
149
SCREW BRACKET TO SIDE MEMBER
149
SCREW , Replaced By: N304017010002
155
NUT STRAP TO BRACKET
155
NUT , Replaced By: N910113010000
191
REAR EXHAUST PIPE (TAIL PIPE),5 3373435 743552
200
CLAMP REAR EXHAUST PIPE TO MUFFLER
203
SCREW 3/2-WAY VALVE TO BRACKET M 8X105
206
WASHER EXHAUST MUFFLER TO STRAP
206
WASHER , Replaced By: N000125008443
209
NUT , Replaced By: N913004008001
209
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
214
BRACKET REAR EXHAUST PIPE
215
SCREW PIPE CLAMP
215
SCREW BRACKET TO SIDE MEMBER
215
SCREW , Replaced By: N304017010002
218
WASHER , Replaced By: N006902011102
218
WASHER , Replaced By: N006902011100
218
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
221
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
221
NUT , Replaced By: N913004008001
239
BRACKET PROTECTIVE PLATE
242
RUBBER BUFFER BRACKET TO SUPPORT
245
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
245
NUT , Replaced By: N913004008001
251
NUT , Replaced By: N910113010000
251
NUT STRAP TO BRACKET
257
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
266
SCREW REAR EXHAUST PIPE TO MUFFLER
269
NUT STRAP TO BRACKET
269
NUT , Replaced By: N910113010000
272
SCREW BRACKET TO SIDE MEMBER
275
NUT STRAP TO BRACKET
275
NUT , Replaced By: N910113010000
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
WASHER , Replaced By: N006902011102
999
SCREW BRACKET TO EXHAUST PIPE,5 528482
999
EXHAUST PIPE FRONT,REAR PART
999
EXHAUST PIPE FRONT,FRONT PART
999
CLAMP BRACKET TO EXHAUST PIPE
999
BRACKET EXHAUST MUFFLER
999
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
999
ANGLE EXHAUST MUFFLER,5 478324
999
WASHER , Replaced By: N006902011100
999
SUPPORT EXHAUST MUFFLER TO BRACKET
999
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
