Поз.
Артикул
Описание

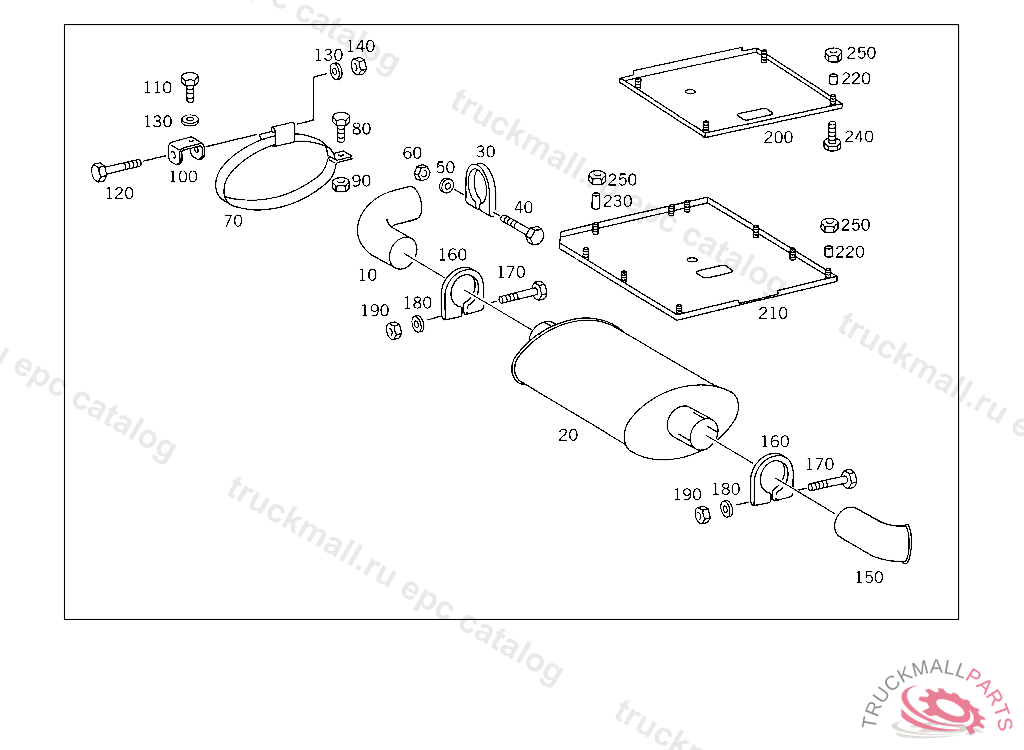

10
FRONT EXHAUST PIPE FROM CONNECTOR TO EXHAUST MUFFLER,5 743552
20
EXHAUST MUFFLER (POSTERIOR MUFFLER)
30
CLAMP EXHAUST PIPE TO MUFFLER
40
SCREW BRACKET TO EXHAUST PIPE,5 528482
50
WASHER , Replaced By: N000125008443
50
WASHER EXHAUST MUFFLER TO STRAP
60
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
60
NUT , Replaced By: N913004008001
70
BRACKET , Replaced By: A6774900540
70
BRACKET , Replaced By: A6774900440
70
BRACKET REAR MUFFLER SUSPENSION
70
BRACKET EXHAUST MUFFLER
80
SCREW SUPPORT TO CROSS MEMBER M 10X28
90
NUT STRAP TO BRACKET
90
NUT , Replaced By: N910113010000
100
BRACKET REAR MUFFLER SUSPENSION
110
SCREW CLAMP TO BRACKET AND TO PIPE
120
SCREW FRONT AXLE REGULATING SOLENOID VALVE
120
SCREW , Replaced By: N000933008134
120
SCREW REAR AXLE REGULATING SOLENOID VALVE
130
WASHER , Replaced By: N000125008443
130
WASHER EXHAUST MUFFLER TO STRAP
140
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
140
NUT , Replaced By: N913004008001
150
END PIECE ,5 765949
160
CLAMP BRACKET TO EXHAUST PIPE
170
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
170
SCREW , Replaced By: N304014008021
180
WASHER , Replaced By: N000125008443
180
WASHER EXHAUST MUFFLER TO STRAP
190
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
190
NUT , Replaced By: N913004008001
200
BATTERY CASE (HEAT SHIELD),EXHAUST MUFFLER,5 743896
210
BATTERY CASE (HEAT SHIELD),EXHAUST MUFFLER,5 743896
220
SPACER TUBE COVERING TO SEMIMONOCOQUE WING, TO BE ADAPTED DURING ASSEMBLY
230
SPACER TUBE REFRIGERANT LINE TO CAB
240
SCREW CAB FLOOR COVERING M 6X25
240
SCREW , Replaced By: N000933006127
250
NUT , Replaced By: N913004006001
250
NUT PUMP TO BRACKET
999
EXHAUST MUFFLER (POSTERIOR MUFFLER)
999
REAR EXHAUST PIPE FRONT PART,5 337343
999
REAR EXHAUST PIPE ,5 7435535 803730, Replaced By: A6764928004
999
BRACKET BRACKET TO EXHAUST MUFFLER BRACKET
999
EXHAUST PIPE-, NOT USED
999
PROTECTIVE PLATE (POSTERIOR MUFFLER)
999
PROTECTIVE PLATE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6774920030
999
REAR EXHAUST PIPE FROM CONNECTOR TO EXHAUST MUFFLER
999
WASHER , Replaced By: N000125008443
999
SCREW , Replaced By: N304017008016
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
