Поз.
Артикул
Описание

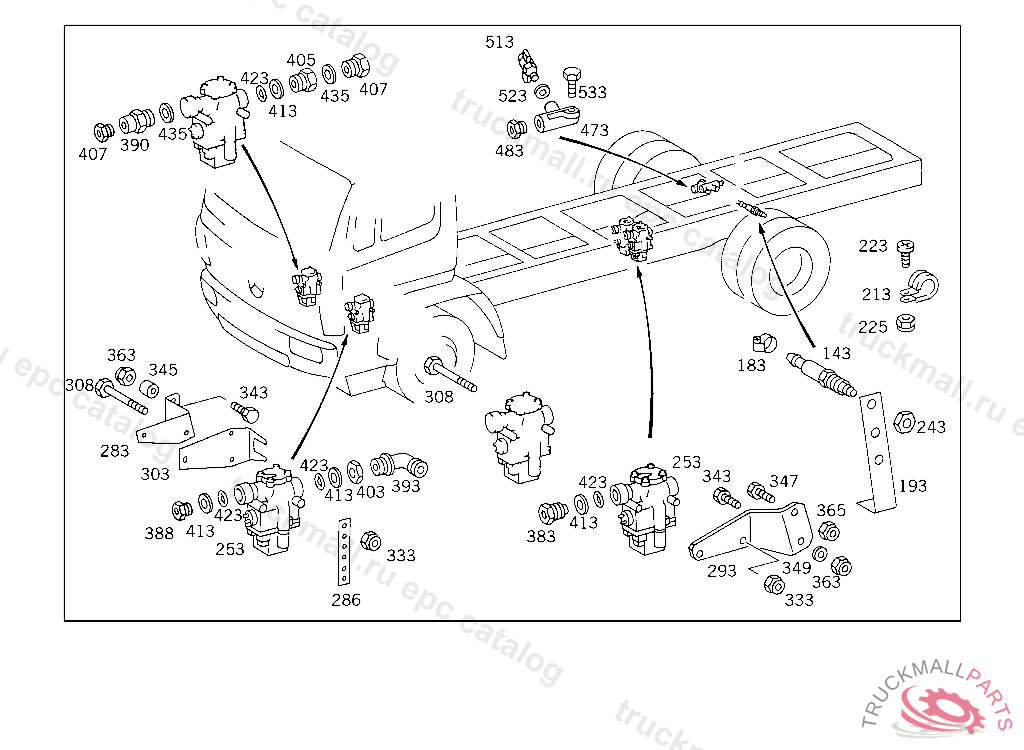

143
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
183
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
183
CLAMP HOSE TO FITTING AND TO OIL TANK
193
BRACKET , Replaced By: A6734290840
193
BRACKET BRAKE HOSE
213
CLAMP BRAKE HOSE BRACKET
223
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
223
SCREW CLAMP TO BRACKET
225
NUT , Replaced By: N913004006001
225
NUT PUMP TO BRACKET
243
NUT BRACKET TO SIDE MEMBER
253
VALVE REGULATING SOLENOID VALVE "KNORR", REPAIR IMPOSSIBLE
253
VALVE , REPAIR IMPOSSIBLE, Replaced By: A0044293444
253
VALVE , REPAIR IMPOSSIBLE, Replaced By: A0044296144
253
VALVE , Replaced By: A0044295944
253
VALVE , Replaced By: A0044296044
253
VALVE (SOLENOID VALVE) "BOSCH", REPAIR IMPOSSIBLE
253
VALVE REGULATING SOLENOID VALVE "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
283
BRACKET RIGHT
283
BRACKET LEFT
283
BRACKET RIGHT
283
BRACKET LEFT
286
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
293
BRACKET 2/2-WAY VALVE,5 465030
303
LOCK LEFT,5 374132
303
LOCK RIGHT,5 374132
303
LOCK VALVE TO BRACKET
308
SCREW AT SIDE MEMBER,REAR M 8X135
308
SCREW FRONT AXLE REGULATING SOLENOID VALVE
308
SCREW VALVE TO BRACKET M 8X55
308
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
308
SCREW REAR AXLE REGULATING SOLENOID VALVE
308
SCREW , Replaced By: N000933008134
308
SCREW , Replaced By: N304017008043
333
NUT , Replaced By: N913004008001
343
SCREW , Replaced By: N304017010002
343
SCREW , Replaced By: N308676012026
343
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
343
SCREW BRACKET TO SUPPORT
343
SCREW BRACKET TO SIDE MEMBER
343
SCREW END PIECE TO EXHAUST PIPE M 10X25
345
BUSHING BRACKET TO FRAME SIDE MEMBER,5 471547
347
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
347
SCREW , Replaced By: N308676012026
349
WASHER BRACKET TO FRAME
363
NUT STRAP TO BRACKET
363
NUT , Replaced By: N910113010000
365
NUT SUPPORT TO SIDE MEMBER
383
FITTING 2/2-WAY VALVE,CONNECTION: "10",5 179531
388
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
390
FITTING LINE CONNECTION
393
ELBOW FITTING 2/2-WAY VALVE,CONNECTION:,5 374132
403
NUT CHECK VALVE TO AIR RESERVOIR
405
FITTING 2/2-WAY VALVE,CONNECTION: "20",5 374133
407
SCREW. UNION SCREW LINE CONNECTION
413
THRUST RING CHECK VALVE TO AIR RESERVOIR
413
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
423
O-RING CHECK VALVE TO AIR RESERVOIR
435
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
435
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
435
SEAL RING 2/2-WAY VALVE,CONNECTION: "20"
473
DISTRIBUTOR
483
SCREW. UNION SCREW LINE CONNECTION
513
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
513
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
523
SEAL RING LINE CONNECTION
533
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
533
SCREW DISTRIBUTOR TO REAR AXLE M8 X48
999
ELBOW FITTING
999
VALVE
999
VALVE (3/2-WAY SOLENOID VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE (SOLENOID VALVE)
999
FITTING AIR RESERVOIR,CONNECTION: "26", NOT USED
999
SEAL RINGWABCO
999
SEAL RING , NOT USED
999
SEAL RINGWABCO
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BREATHER , Replaced By: A3933280065
999
CONNECTOR DISTRIBUTOR TO CAB
999
LOCK LEFT
999
LOCK RIGHT
999
BRACKET LEFT
999
BRACKET RIGHT
999
SCREW VALVE TO CAB M 8X85
999
NUT COMBINATION CYLINDER,CONNECTION: "12"
999
HOLLOW SCREW HEATING CONNECTION
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
CONNECTOR 75 DEGREES
999
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
999
VALVE PART
999
TEST CONNECTION
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
SEAL RING , Replaced By: A0009940747
999
LOCK RING LINE CONNECTION
999
LOCK , Replaced By: A0009945448
999
LOCK LINE CONNECTION
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SCREW. UNION SCREW LINE CONNECTION
999
CONNECTOR FITTING WITH PROTECTION AGAINST TORSION TO M 22
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
999
SEAL RINGWABCO
999
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
