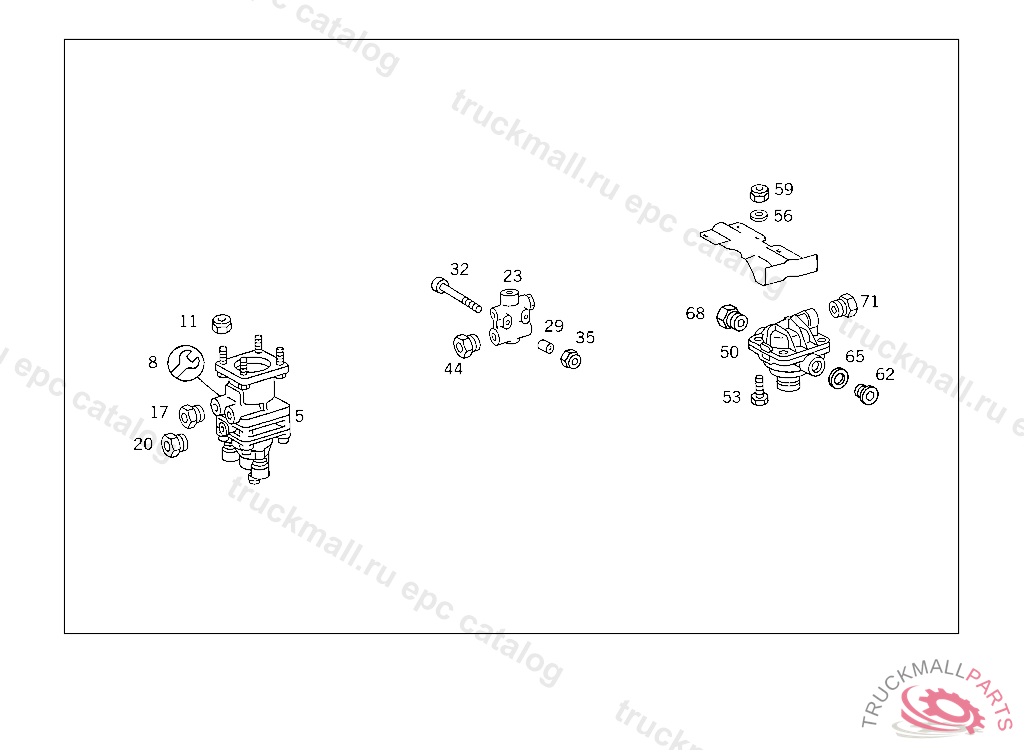

Поз.
Артикул
Описание
5
BRAKE VALVE (TWO-CIRCUIT BRAKE VALVE) WABCO
5
BRAKE VALVE (TWO-CIRCUIT BRAKE VALVE) KNORR
5
BRAKE VALVE (TWO-CIRCUIT BRAKE VALVE) BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
REPAIR KIT , Replaced By: A0004308306
8
REPAIR KIT SERVICE BRAKE VALVE BOSCH
8
REPAIR KITWABCO
11
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
11
NUT , Replaced By: N913004008001
11
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
17
SCREW. UNION SCREW LINE CONNECTION
20
SCREW. UNION SCREW LINE CONNECTION
20
SCREW. UNION SCREW , Replaced By: A0009973734
23
DISTRIBUTOR LESS CHECK VALVE
29
GUIDE BUSHING TWO-WAY VALVE TO FRAME
32
SCREW DISTRIBUTOR TO FRAME SIDE MEMBER
35
NUT , Replaced By: N913004008001
35
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
35
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
SCREW. UNION SCREW LINE CONNECTION
50
VALVE (RELAY VALVE) WABCO, REPAIR IMPOSSIBLE
50
VALVE (RELAY VALVE) BOSCH, REPAIR IMPOSSIBLE
53
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
53
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
53
SCREW BRACKET TO SIDE MEMBER
53
SCREW , Replaced By: N304017008040
56
WASHER , Replaced By: N000125008443
56
WASHER EXHAUST MUFFLER TO STRAP
59
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
59
NUT , Replaced By: N913004008001
59
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
62
SCREW PLUG , Replaced By: N000908022011
65
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
68
SCREW. UNION SCREW LINE CONNECTION
71
SCREW. UNION SCREW LINE CONNECTION
71
SCREW. UNION SCREW , Replaced By: A0009973734
