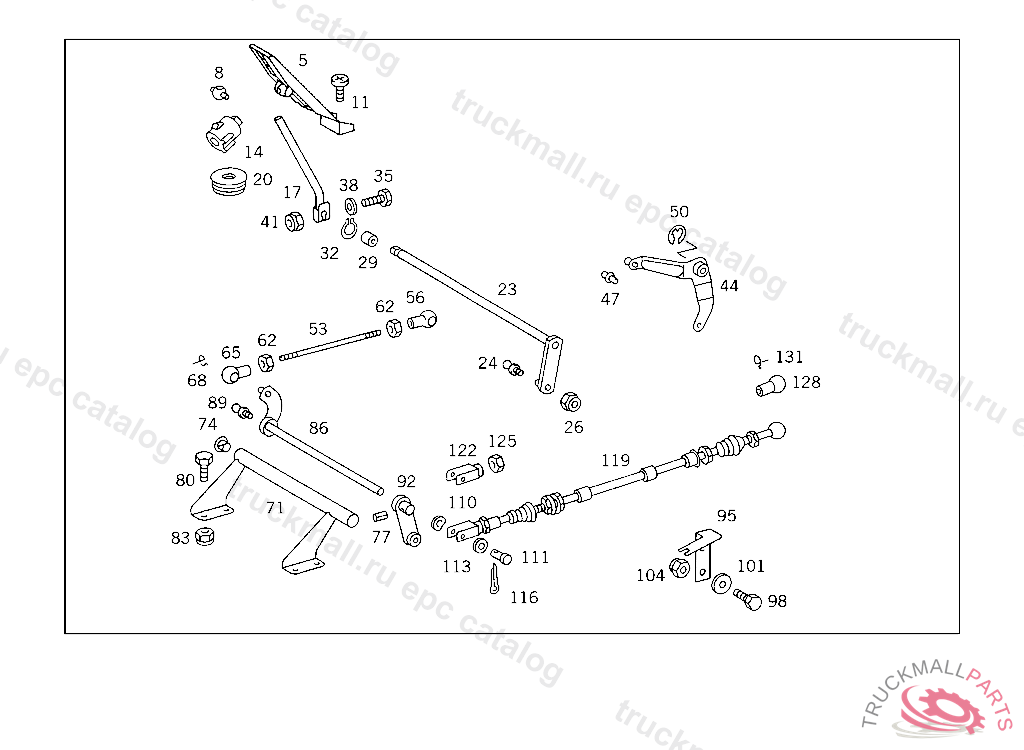

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
5
ACCELERATOR PEDAL
8
JOINT
11
SCREW PEDAL TO CAB FLOOR M 6X16
14
STOP FULL THROTTLE
17
LEVER ACCELERATOR PEDAL
17
LEVER ACCELERATOR PEDAL
20
GROMMET CONTROL ROD COVERING
23
LEVER CONTROL, IN CASE OF TURBOCHARGED ENGINE,ONLY INSTALL LEVER HAVING SCREWED BALL PIVOT
23
SHAFT CONTROL,5 552123
24
BALL PIVOT
26
NUT PUMP TO BRACKET
29
BUSHING ACCELERATOR CONTROL LINKAGE BEARING
32
LOCK PLATE CONTROL SHAFT TO CAB
35
SCREW BRACKET TO FRAME
38
WASHER PLUG SOCKET TO BRACKET
41
NUT PUMP TO BRACKET
44
LEVER (INTERMEDIATE LEVER)
47
BALL PIVOT INTERMEDIATE LEVER
50
LOCK PLATE INTERMEDIATE BEARING
53
PULL ROD FROM CONTROL LEVER TO INTERMEDIATE BEARING 6X120X30/30
53
PULL ROD6X180X30/30
56
BALL SOCKET FROM CONTROL LEVER TO INTERMEDIATE BEARING
56
BALL SOCKET AT CONTROL LEVER
62
NUT CLAMP TO BRACKET
65
BALL SOCKET PULL ROD TO LEVER
68
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
71
GUIDE CONTROL SHAFT
74
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
77
CLAMPING SLEEVE BEARING TUBE
80
SCREW , Replaced By: A4609900601
83
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
83
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
86
SHAFT (CONTROL SHAFT)
89
BALL PIVOT CONTROL SHAFT
92
LEVER (CONTROL LEVER)
95
BRACKET
98
SCREW ANGLE TO CROSS MEMBER M 10X30
101
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
104
NUT BRACKET TO SIDE MEMBER,XB209706
110
SPRING WASHER BRAKE SHOE WITH LINING
111
PIN ROD TO LEVER
113
WASHER PULL ROD TO SHIFT LEVER
116
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
119
ROD (CONTROL ROD),FROM INTERMEDIATE BEARING TO ENGINE,5 4232975 573246
125
NUT
128
BALL SOCKET ROD TO BALL PIVOT
131
SECURING CLIP. CIRCLIP
