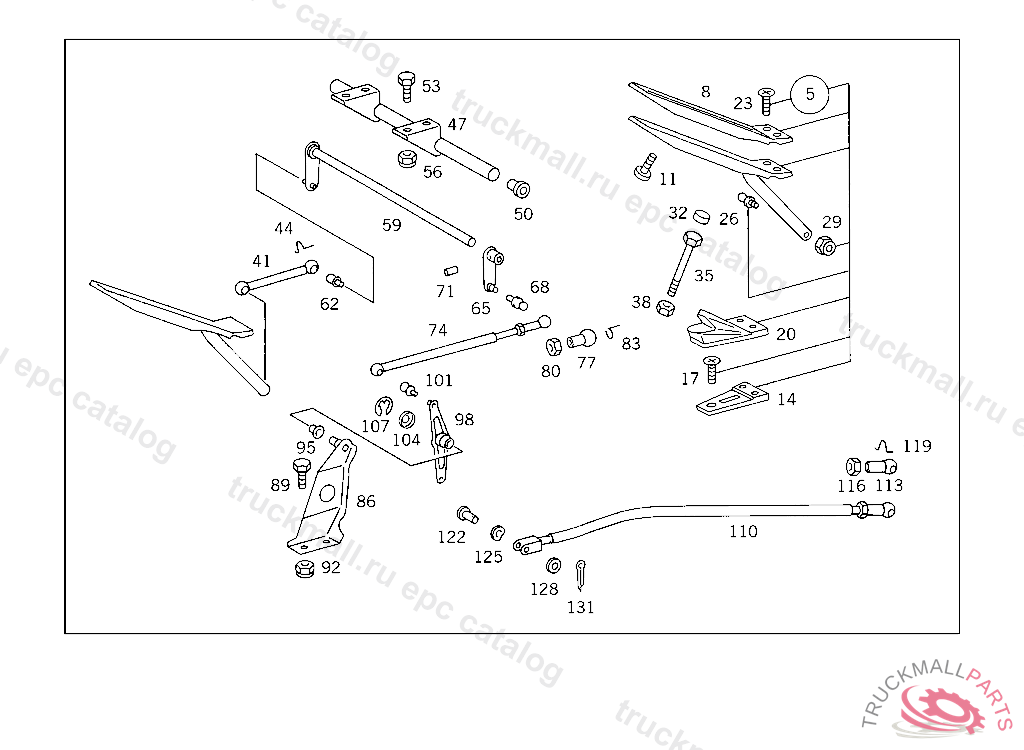

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW PEDAL TO CAB FLOOR
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
BALL PIVOT LOAD SENSOR
29
NUT VOLTAGE TRANSFORMER
32
STOP ACCELERATOR PEDAL
35
SCREW VALVE TO BRACKET, Replaced By: N304014008002
38
NUT , Replaced By: N304032008006
41
BALL SOCKET ROD TO ACCELERATOR PEDAL
44
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
47
BEARING TUBE CONTROL SHAFT,5 151594
50
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
53
SCREW , Replaced By: N304017008016
56
NUT , Replaced By: N913004008001
59
SHAFT CONTROL,5 151594
62
BALL PIVOT CONTROL SHAFT
65
LEVER (CONTROL LEVER)
68
BALL PIVOT CONTROL SHAFT
71
CLAMPING SLEEVE , Replaced By: N308752004001
74
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
77
BALL SOCKET PULL ROD TO LEVER
80
NUT BALL PIVOT TO LEVER
83
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
89
SCREW END PIECE TO EXHAUST PIPE M 10X25
92
NUT , Replaced By: N910113010000
101
BALL PIVOT INTERMEDIATE LEVER
104
COVERING INTERMEDIATE BEARING
107
LOCK PLATE INTERMEDIATE BEARING
110
ROD FROM INTERMEDIATE LEVER TO ENGINE
113
BALL SOCKET ROD TO BALL PIVOT
116
NUT , Replaced By: N304032008006
119
SECURING CLIP DUMPER PUMP, UP TO IDENT NO. 4 473926 FROM IDENT NO. MICROFICHE MODEL 714.0
122
PIN
125
SPRING WASHER , Replaced By: N000137008212
128
WASHER BRACKET TO CROSS MEMBER
131
COTTER PIN BRACKET TO BATTERY CASE, 415 5 014668 416 5 000515 417 4 972023
