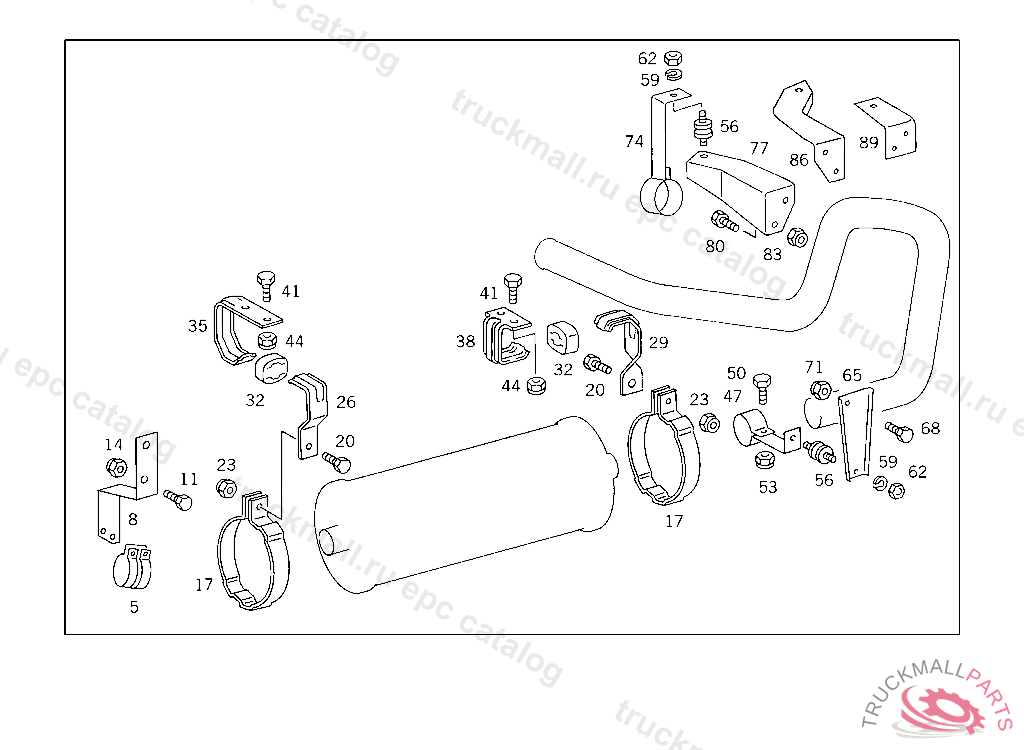

Поз.
Артикул
Описание
17
CLAMP EXHAUST MUFFLER TO BRACKET,FRONT AND REAR
20
SCREW EXHAUST PIPE TO BRACKET
23
NUT , Replaced By: N910113010000
26
BRACKET EXHAUST MUFFLER TO SUPPORT,FRONT
29
BRACKET EXHAUST MUFFLER TO SUPPORT
32
DAMPING PAD PARTICLE FILTER
35
SUPPORT FRONT EXHAUST MUFFLER
38
SUPPORT REAR EXHAUST MUFFLER
41
SCREW , Replaced By: N000933012068
41
SCREW SUPPORT TO CROSS MEMBER M 10X28
44
NUT BRACKET TO LEFT SIDE MEMBER
44
NUT , Replaced By: N910113010000
56
RUBBER BUFFER BRACKET TO SUPPORT
59
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
62
NUT BRACKET TO SUPPORT AND TO END PIECE
74
BRACKET , Replaced By: A3814923841, +001N071555075502
77
SUPPORT REAR EXHAUST PIPE
80
SCREW , Replaced By: N304017010002
83
NUT , Replaced By: N910113010000
