Mercedes N912004010102 - КОЛЬЦО ПРУЖИННОЕ

MB 500 684.040

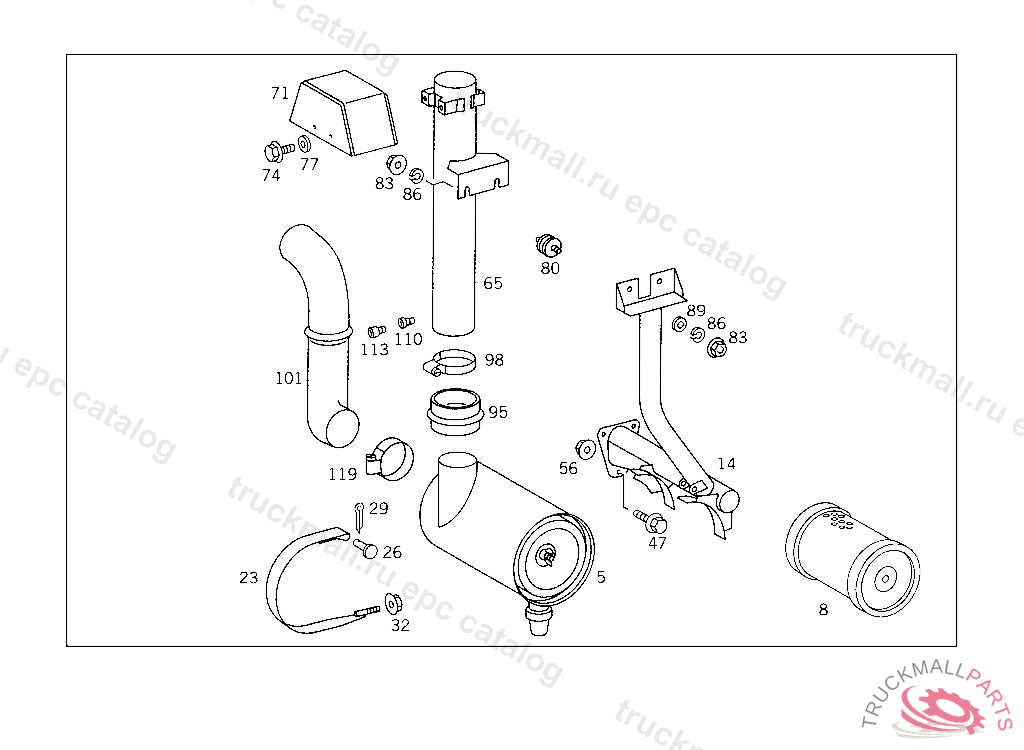

52 CHASSIS SHEET METAL - 120 AIR INTAKE IL. 1

Поз.
Артикул
Описание
5
A6845284006
8
A0030949704
8
A0030949804
14
A6845200041
23
A6845200067
26
N001444014214
PIN
29
N000094004050
COTTER PIN STRAP TO SUPPORT
32
A0009906350
NUT BRACKET TO BRACKET
47
N304017010040
SCREW STRUT TO CROSS MEMBER M 10X25
47
N304017012020
SCREW END PIECE TO EXHAUST PIPE M 12X30
56
A0009906850
NUT BRACKET TO BEARING BRACKET
56
A0009906550
NUT EXHAUST PIPE TO SIDE MEMBER
65
A6845200301
71
A6845200004
74
A0019901104
SCREW , Replaced By: N304017006018
77
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
80
A6845200009
83
A0009908150
NUT BATTERY CABLE
86
N912004010102
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
89
N000125010518
WASHER , Replaced By: N000125010532
95
A6845280091
98
N916018100000
CLAMP
101
A6845200086
110
A6849900064
113
A0005424627
WARNING INDICATOR
119
N916018110000
CLAMP AIR CLEANER TO SUPPORT
