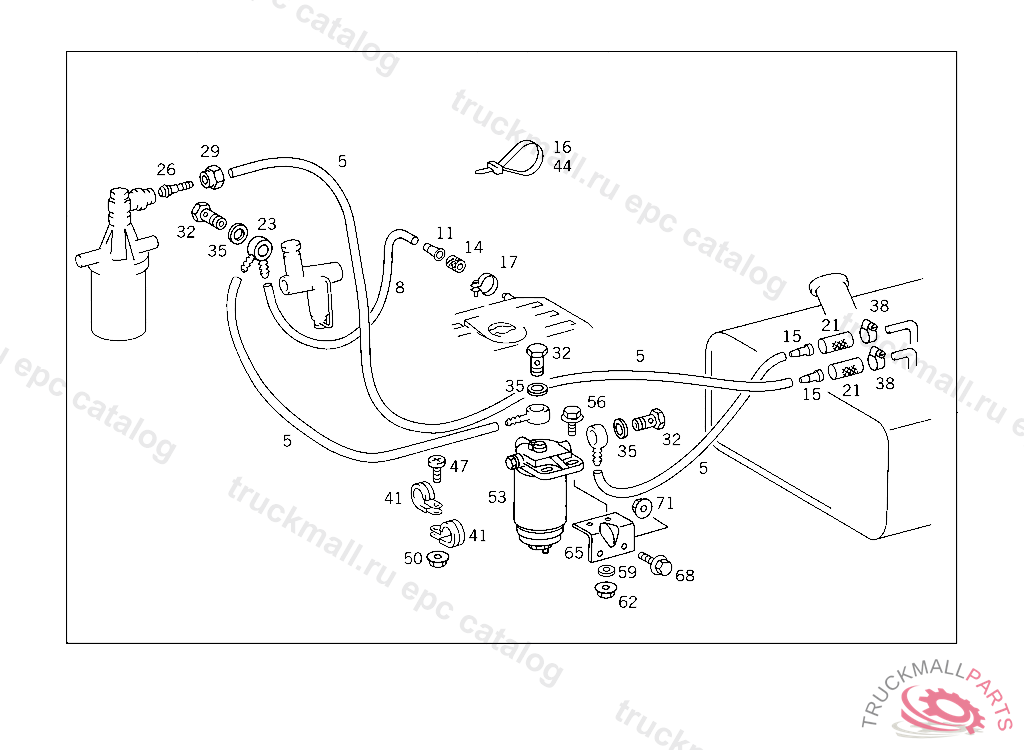

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
5
PLASTIC PIPE AERATION, ORDER BY THE METER
8
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
8
PLASTIC PIPE RISING PIPE 4X6 MM
11
SLEEVE LEAK LINE
14
HOSE LEAK LINE, ORDER BY THE METER
14
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
15
SLEEVE LINE CONNECTION
16
LOOM TIE LINE MOUNTING 280 MM
17
CLAMP ,747891
21
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
23
BANJO UNION , Replaced By: A0009909288
26
FITTING RETURN LINE
29
UNION NUT RETURN
32
HOLLOW SCREW , Replaced By: N915036010108
32
HOLLOW SCREW , Replaced By: N915036010108
35
SEAL RING FUEL LINE TO FEED PUMP
38
CLAMP ,747891
38
CLAMP LINE MOUNTING
41
CLAMP LINE MOUNTING
44
LOOM TIE LINE MOUNTING 280 MM
47
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
50
NUT BALL SOCKET TO ROD
53
SEPARATOR
56
SCREW HOSE TO CAB M 6X25
59
WASHER PLUG SOCKET TO BRACKET
62
NUT AT FILTER BRACKET
65
BRACKET
68
SCREW , Replaced By: N910105010009
71
NUT EXHAUST PIPE TO SIDE MEMBER
