Поз.
Артикул
Описание
5

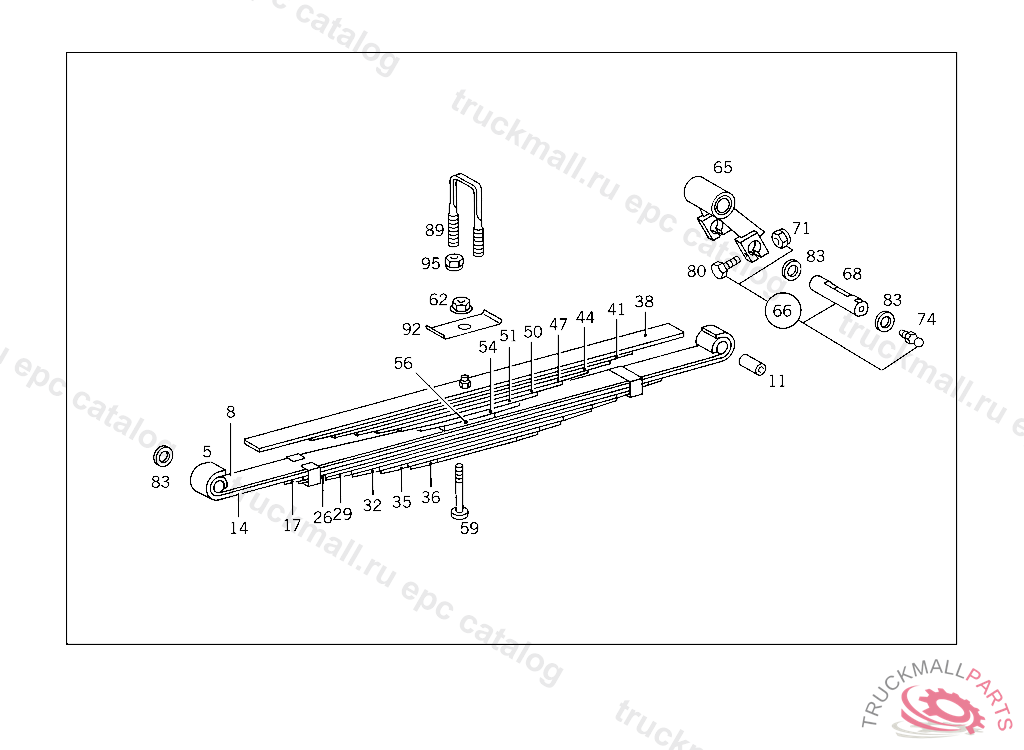

REAR SPRING 8-LEAF,WITH 7-LEAF HELPER SPRING
8
REAR SPRINGNO.1
11
BUSHING
14
SPRING LEAFNO.2
17
SPRING LEAFNO.3
26
REAR SPRINGNO.4
29
SPRING LEAFNO.5
32
SPRING LEAFNO.6
35
SPRING LEAFNO.7
36
SPRING LEAFNO.8
38
SPRING LEAF (HELPER SPRING) NO.1
41
SPRING LEAF (HELPER SPRING) NO.2
44
SPRING LEAF (HELPER SPRING) NO.3
47
SPRING LEAF (HELPER SPRING) NO.4
50
SPRING LEAF (HELPER SPRING) NO.5
51
SPRING LEAF (HELPER SPRING) NO.6
54
SPRING LEAFNO.7
56
SHIM
59
SPRING BOLTM12X160, TO 682 320 73 02, 74 02
62
NUT BRACKET TO BEARING BRACKET
65
SHACKLE REAR SPRING,REAR
66
SHACKLE PIN PARTS KIT
68
PIN SHACKLE PIN
71
NUT STRAP TO BRACKET
74
GREASE NIPPLE PROTECTIVE TUBE
80
SCREW STRAP TO EXHAUST MUFFLER
80
SCREW SHACKLE PIN
80
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
83
WASHER FRONT SPRING TO SPRING SHACKLE 3,0 MM
83
WASHER REAR SPRING FRONT AND REAR BRACKETS 3,3 MM
89
CLAMP
89
CLAMP
92
PLATE
95
NUT CONSOLE TO SUPPORT
