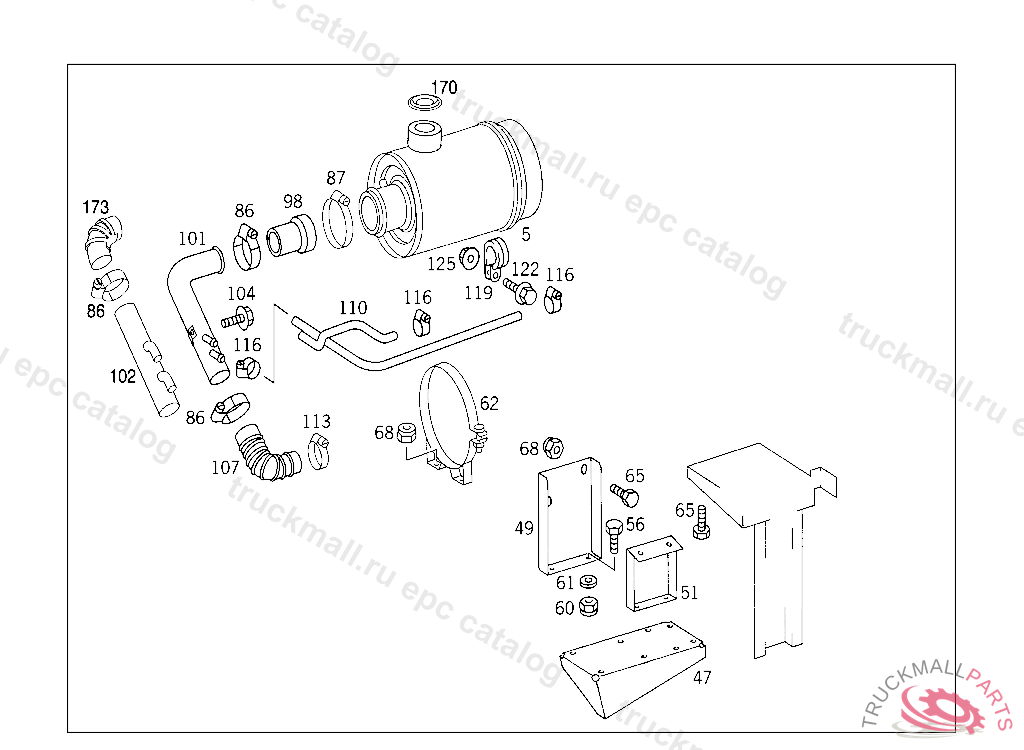

Поз.
Артикул
Описание
5
AIR CLEANER ,D 010655
62
STRAP ,D 001765
65
SCREWM 10X20
68
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
86
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
86
CLAMP , Replaced By: A0059970690
86
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
87
CLAMP , Replaced By: N000000000678
98
HOSE FROM AIR CLEANER TO ENGINE,D 00718706.2001
104
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
107
HOSE AIR INTAKE PIPE,D 00718706.2001
107
HOSE AIR INTAKE PIPE,D 010655
110
HOSE AIR INTAKE PIPE 25 X 1350MM, ORDER BY THE METER
110
HOSE AIR INTAKE PIPE
113
CLAMP HOSE TO PIPE ELBOW AND TO ENGINE CONNECTION
113
CLAMP FROM ENGINE TO TRANSMISSION
116
CLAMP HOSE TO AIR CLEANER AND TO AIR COMPRESSOR
119
CLAMP
122
SCREW , Replaced By: N910143008002
122
SCREW , Replaced By: N910142008001
125
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
170
RUBBER CAP
173
HOSE AIR INTAKE PIPE,D 010655
