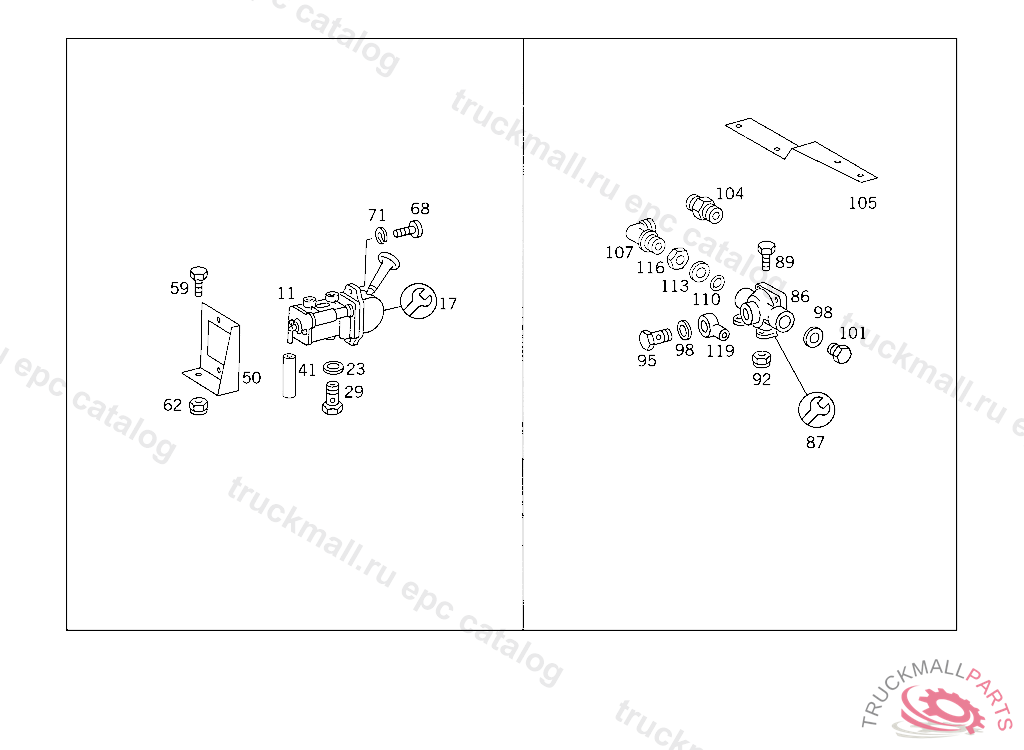

Поз.
Артикул
Описание
11
VALVEWABCO
11
VALVEKNORR
17
REPAIR KIT HAND BRAKE VALVE TO 364 430 72 81,JB793544
17
REPAIR KITTO 001 431 01 81, USED WITH AIR BRAKE,FROM IDENT NO. A 059729 ALSO INSTALLED ON: A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
23
SEAL RING FUEL LINE TO FEED PUMP
50
BRACKET PARKING BRAKE VALVE
50
BRACKET , Replaced By: A3844307510
59
SCREW SPEED SENSOR TO REAR AXLE
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
68
HEXALOBULAR BOLT PIPE ELBOW TO BRACKET M8X16
71
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
86
VALVE (QUICK BREATHER VALVE) WABCO
86
VALVE QUICK-RELEASE VALVE KNORR
86
VALVE , Replaced By: A6934297144
86
VALVE (QUICK-RELEASE VALVE)
86
VALVE (QUICK BREATHER VALVE) VARGA
87
REPAIR KITTOA 382 429 70 44, A 693 429 71 44
89
SCREW LINES TO BRACKET
89
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
92
NUT HORN TO BRACKET M8
95
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
98
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
101
SCREW PLUG AT TANK
101
SCREW PLUG
105
BRACKET QUICK-RELEASE VALVE
107
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
110
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
113
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
113
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
113
THRUST RING LOCKING VALVE
116
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
FITTING AT QUICK-RELEASE VALVE TOA 6934297044/7144/7244
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
