Mercedes N003862004001 - КОЛЬЦО ПРОСТАВОЧНОЕ

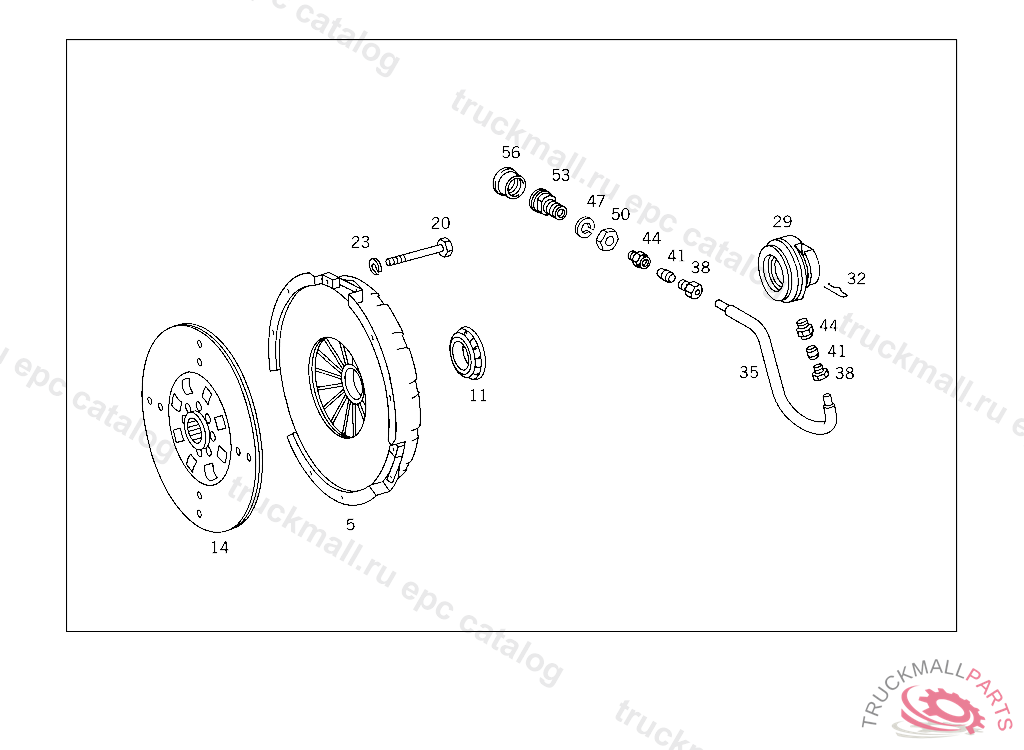

5

CLUTCH PRESSURE PLATE CLUTCH, COMPONENT PARTS NOT AVAILABLE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART

11

RELEASE RING

14

CLUTCH DISC ASBESTOS-FREE LINING VALEO

14

CLUTCH DISC

14

CLUTCH DISC

14

CLUTCH DISC ASBESTOS-FREE LINING F&S

14

CLUTCH DISC

14

CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0082500803

14

CLUTCH DISC

20

HEX. HEAD. SCREW PULLEY TO FAN SHAFT

23

LOCK WASHER

29

RELEASE BEARING

32

SPRING RELEASE LEVER TO RELEASE BEARING

35

HOSE , Replaced By: A3205730036

38

UNION SCREW RELEASE BEARING LUBRICATION

44

SCREW-IN FITTING RELEASE COLLAR LUBRICATION

47

LOCK WASHER RAIL TO SUBSTRUCTURE

50

NUT RELEASE BEARING LUBRICATION

53

GREASE NIPPLE RELEASE COLLAR LUBRICATION

56

CAP RELEASE BEARING LUBRICATION
