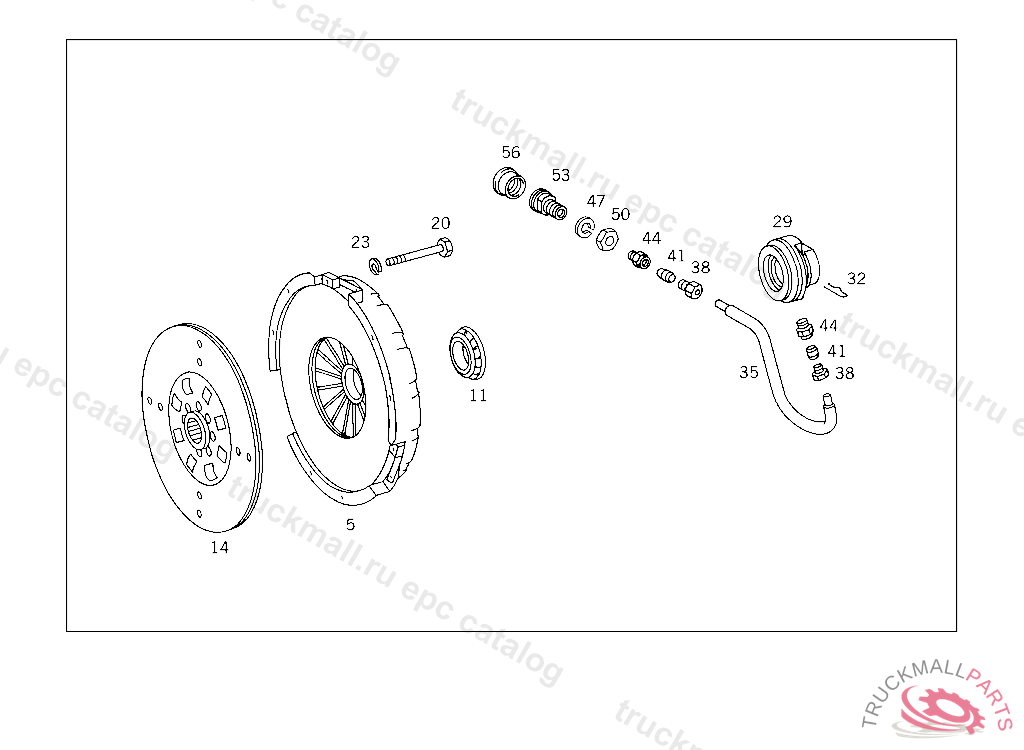

Mercedes N071428004102 - Штуцер

5

CLUTCH PRESSURE PLATE CLUTCH, COMPONENT PARTS NOT AVAILABLE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART

11

RELEASE RING

14

CLUTCH DISC ASBESTOS-FREE LINING VALEO

14

CLUTCH DISC

14

CLUTCH DISC

14

CLUTCH DISC , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0082500803

14

CLUTCH DISC ASBESTOS-FREE LINING F&S

14

CLUTCH DISC

14

CLUTCH DISC

20

HEX. HEAD. SCREW PULLEY TO FAN SHAFT

23

LOCK WASHER

29

RELEASE BEARING

32

SPRING RELEASE LEVER TO RELEASE BEARING

35

HOSE , Replaced By: A3205730036

38

UNION SCREW RELEASE BEARING LUBRICATION

41

DOUBLE TAPER RING RELEASE COLLAR LUBRICATION

47

LOCK WASHER RAIL TO SUBSTRUCTURE

50

NUT RELEASE BEARING LUBRICATION

53

GREASE NIPPLE RELEASE COLLAR LUBRICATION

56

CAP RELEASE BEARING LUBRICATION
