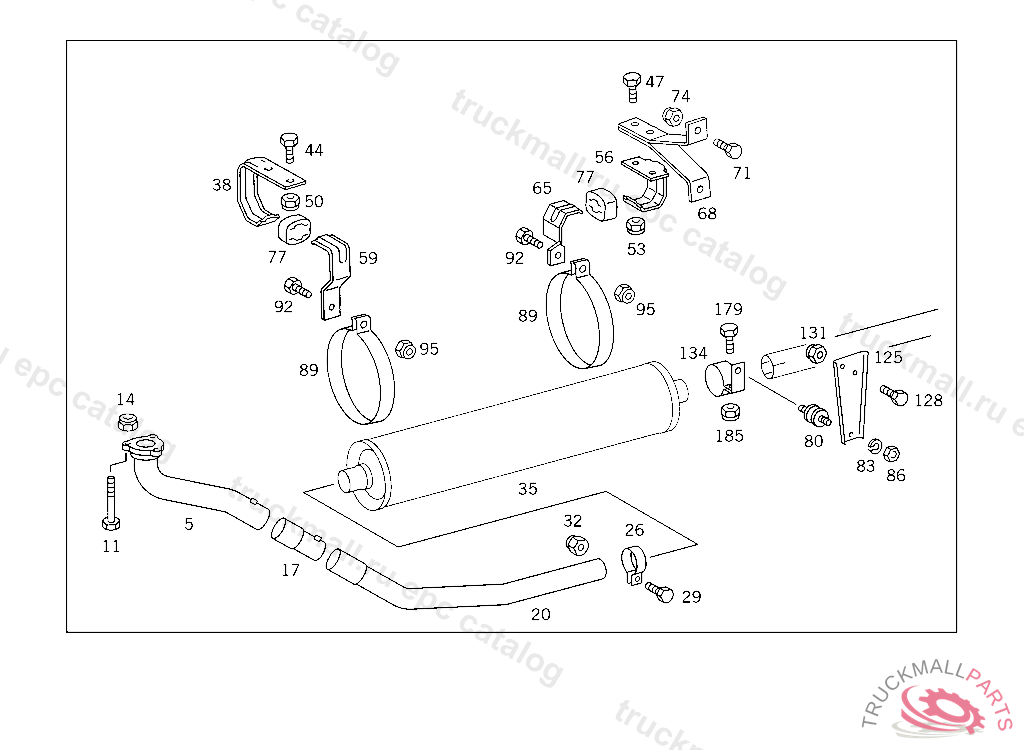

Поз.
Артикул
Описание
5
11
SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M 12X1.5X75
14
NUT FRONT SPRING FRONT BRACKET TO SIDE MEMBER
17
20
26
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
29
SCREW BRACKET TO BUMPER,LEFT M 10X25
32
NUT , Replaced By: N910113010000
35
EXHAUST MUFFLER , Replaced By: A6844900301
38
SUPPORT FRONT EXHAUST MUFFLER
44
SCREW BEARING BRACKET TO SIDE MEMBER
47
SCREW BRACKET TO FRAME M 10X28
50
NUT BRACKET TO LEFT SIDE MEMBER
53
NUT , Replaced By: N910113010000
56
SUPPORT REAR EXHAUST MUFFLER
59
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6554922041
65
77
DAMPING PAD PARTICLE FILTER
80
RUBBER BUFFER BRACKET TO SUPPORT
83
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
86
NUT BRACKET TO FRAME
89
89
CLAMP EXHAUST MUFFLER TO BRACKET
92
SCREW EXHAUST PIPE TO BRACKET
95
NUT , Replaced By: N910113010000
125
SUPPORT TAIL PIPE
128
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
131
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
134
179
SCREW , Replaced By: N304017010002
179
SCREW END PIECE TO EXHAUST PIPE M 10X25
185
NUT , Replaced By: N910113010000
