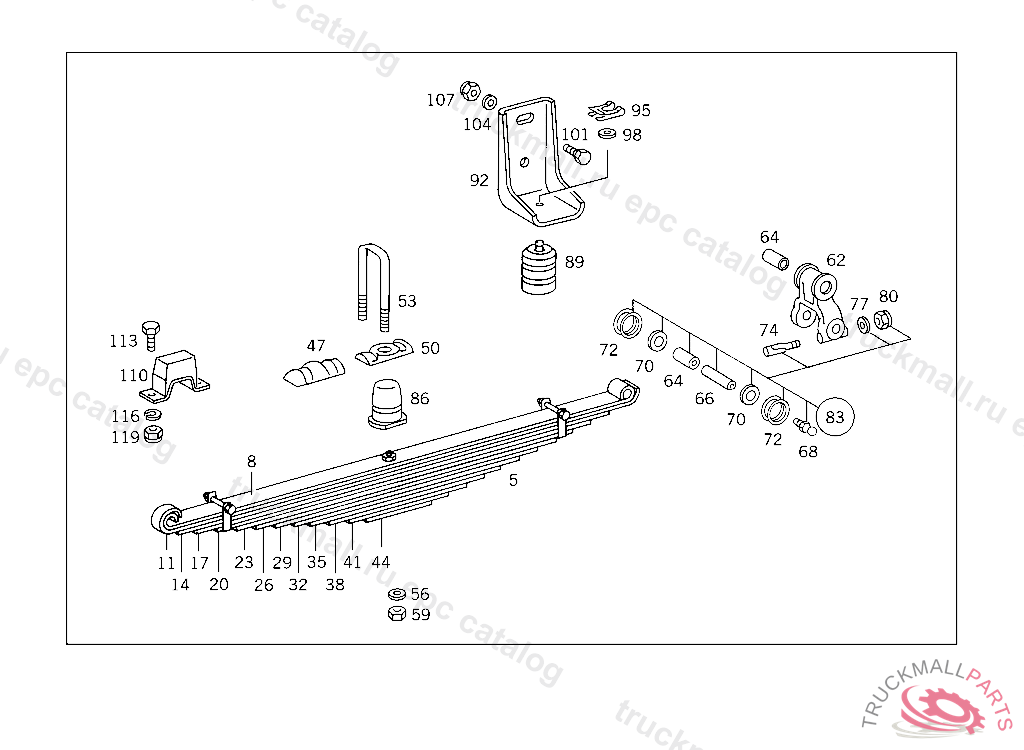

Поз.
Артикул
Описание
5
8
11
14
17
20
23
26
29
SPRING LEAFNO.8
32
35
38
41
44
50
PLATE FRONT SPRINGS TO FRONT AXLE
53
U-BOLT FRONT SPRINGS TO FRONT AXLE M18X1,5X230 MMTO 695 320 02 02
53
U-BOLT FRONT SPRINGS TO FRONT AXLE M18X1,5X250 MM
56
WASHER FRONT SPRINGS TO FRONT AXLE
59
NUT
62
SHACKLE FRONT SPRING REAR BRACKET
64
BUSHING
64
BUSHING
66
SHACKLE PIN FRONT SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
68
GREASE NIPPLE PROTECTIVE TUBE
68
GREASE NIPPLEROCKINGER
68
GREASE NIPPLE
70
WASHER AS REQUIRED 4.00 MM
70
WASHER AS REQUIRED 4.20 MM
72
SEAL RING SPRING SUSPENSION
74
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
77
WASHER GROUND CABLE
80
NUT , Replaced By: N910113010000
83
SHACKLE PIN PARTS KIT
89
RUBBER SPRING SPRING STOP TO FRAME BOTTOM SIDE
92
BRACKET RUBBER SPRING
95
LOCK RUBBER SPRING TO BRACKET
98
WASHER
101
SCREW , Replaced By: A9429901304
101
SCREW , Replaced By: N308676014012
104
WASHER BRACKET TO SIDE MEMBER
107
NUT , Replaced By: N910113014000
110
RUBBER MOUNTING AXLE STOP
113
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
113
SCREW BRACKET TO BUMPER,LEFT M 10X25
116
LOCK WASHER LOCKING MECHANISM TO CAB
119
NUT , Replaced By: N910113010000
