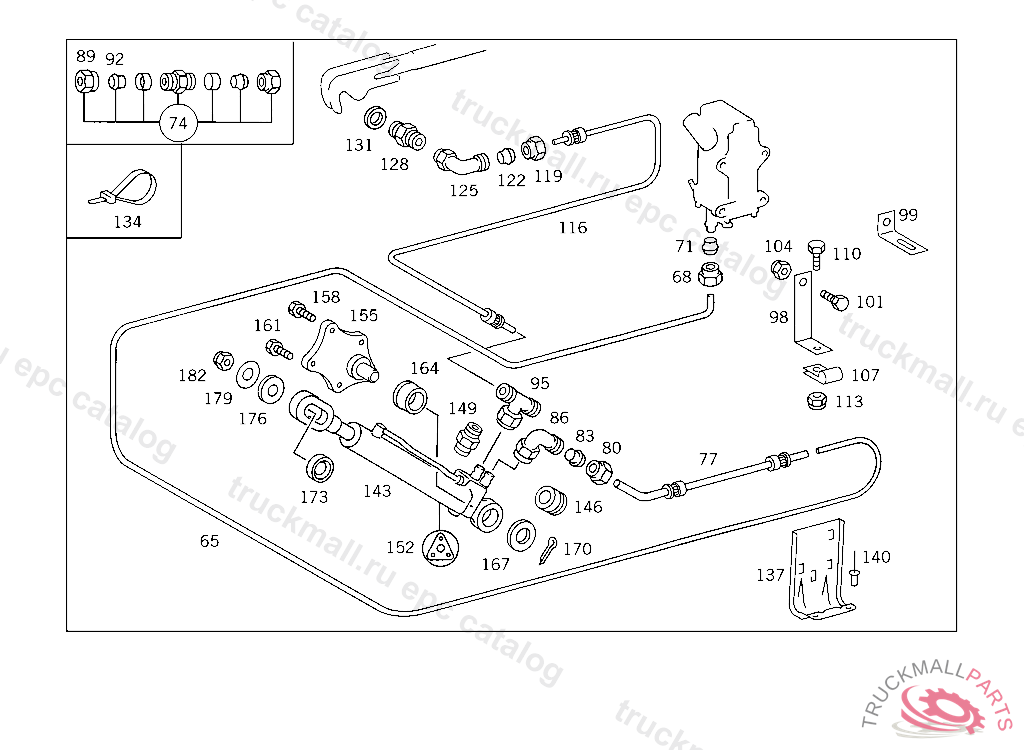

Поз.
Артикул
Описание
65
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
68
UNION NUT
71
GLAND , Replaced By: A0019901667
74
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
77
HOSE , Replaced By: A3875530182
77
HOSE , Replaced By: A3875530182
80
UNION NUT
83
GLAND , Replaced By: A0019901667
86
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
89
UNION NUT
92
GLAND , Replaced By: A0019901667
95
T-FITTING. FITTING AT INJECTION PUMP
98
BRACKET SUCTION LINE
99
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
101
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
104
NUT , Replaced By: N913004008001
107
CLAMP LINE MOUNTING
110
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
113
NUT , Replaced By: N913004006001
116
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL,5 942826
119
UNION NUT
122
GLAND , Replaced By: A0019901667
125
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
128
FITTING 3/2-WAY VALVE,CONNECTION: "30"
131
SEAL RING LINE CONNECTION
134
LOOM TIE LINE MOUNTING
137
BRACKET HIGH PRESSURE HOSE TO CAB
140
RIVET , NOT USED
143
CYLINDER , Replaced By: A0015539505
143
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
146
GUIDEWEBER
149
FITTINGWEBER,TO 001 553 35 05
152
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
152
GASKET KIT HYDRAULIC CYLINDER WEBER
155
BEARING BRACKET HYDRAULIC CYLINDER
158
SCREW , Replaced By: N000961012051
161
SCREW BRACKET TO FRAME
164
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
167
WASHER HYDRAULIC CYLINDER TO CAB
170
COTTER PIN6,3X36 MM
173
WASHER HYDRAULIC CYLINDER TO CAB
176
WASHER HYDRAULIC CYLINDER TO CAB
179
WASHER HYDRAULIC CYLINDER TO CAB
182
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
