Поз.
Артикул
Описание

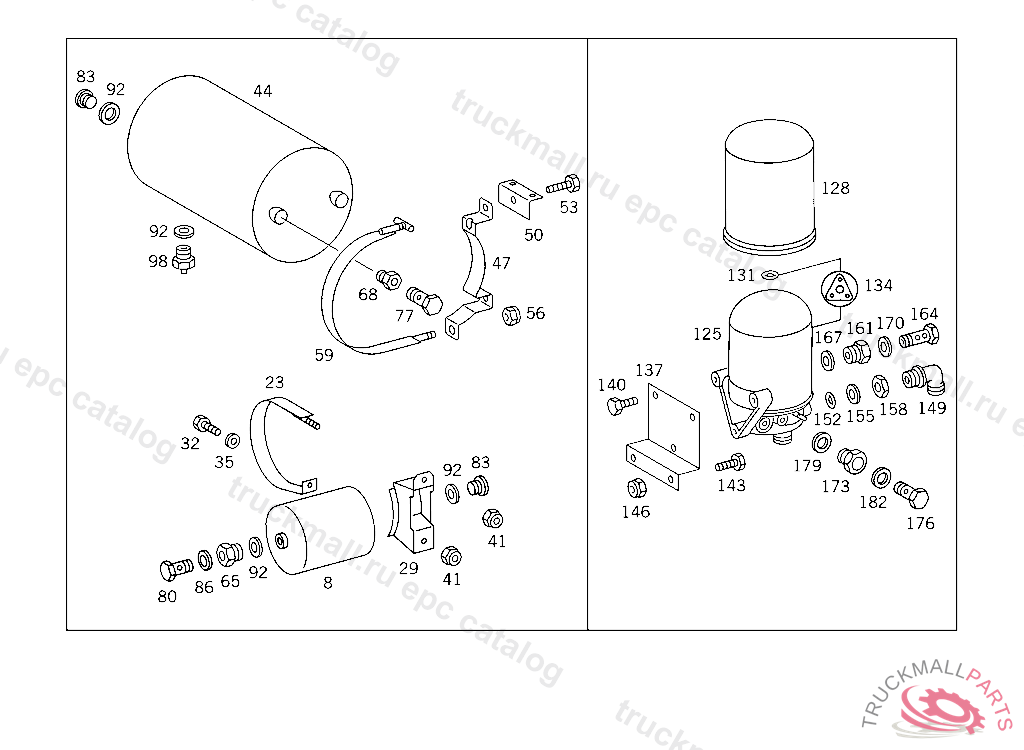

8
RESERVOIR COMPRESSED AIR 4 L,EURO,5 9363665 812731
23
STRAP AIR RESERVOIR
29
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
32
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
35
WASHER TRAILER PLUG SOCKET TO BRACKET
41
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
RESERVOIR ,5 563826
47
BRACKET AIR RESERVOIR
53
SCREW BRACKET TO BUMPER,LEFT M 10X25
56
NUT , Replaced By: N910113010000
59
STRAP AIR RESERVOIR TO BRACKET
65
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
68
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
77
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
80
HOLLOW SCREW HEATING CONNECTION
83
SCREW PLUG , Replaced By: N000908022011
92
SEAL RING AIR RESERVOIR,CONNECTION: "42",5 339168
92
THRUST RING CHECK VALVE TO AIR RESERVOIR
92
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
92
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
98
VALVE DRAIN, Replaced By: A0004322407
98
VALVE DRAIN, Replaced By: A0004322107
98
VALVE , Replaced By: A0004322407
98
VALVE. DRAIN VALVE DRAIN
125
AIR DEHYDRATORKNORR,5 937586, Replaced By: A0024317015
125
AIR DEHYDRATORWABCO,5 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
125
AIR DEHYDRATORBOSCH,5 937586
128
AIR CLEANER COMPLETE TO BOSCH,KNORR
128
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
131
SEAL RINGWABCO
134
GASKET KIT SEAL RINGS KNORR,5 937586
134
GASKET KITBOSCH
134
GASKET KITWABCO
137
140
SCREW , Replaced By: N308676012012
143
SCREW BRACKET TO FRAME SIDE MEMBER
146
NUT , Replaced By: N910113010000
149
ELBOW FITTING ,5 433281
152
O-RING CHECK VALVE TO AIR RESERVOIR
155
THRUST RING CHECK VALVE TO AIR RESERVOIR
155
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
158
NUT CHECK VALVE TO AIR RESERVOIR
161
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
164
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
167
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
170
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
173
FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
176
HOLLOW SCREW HEATING CONNECTION
179
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
182
SEAL RING LINE CONNECTION
