Mercedes A6204923109 - Соединитель

MBO8000/42 684.482

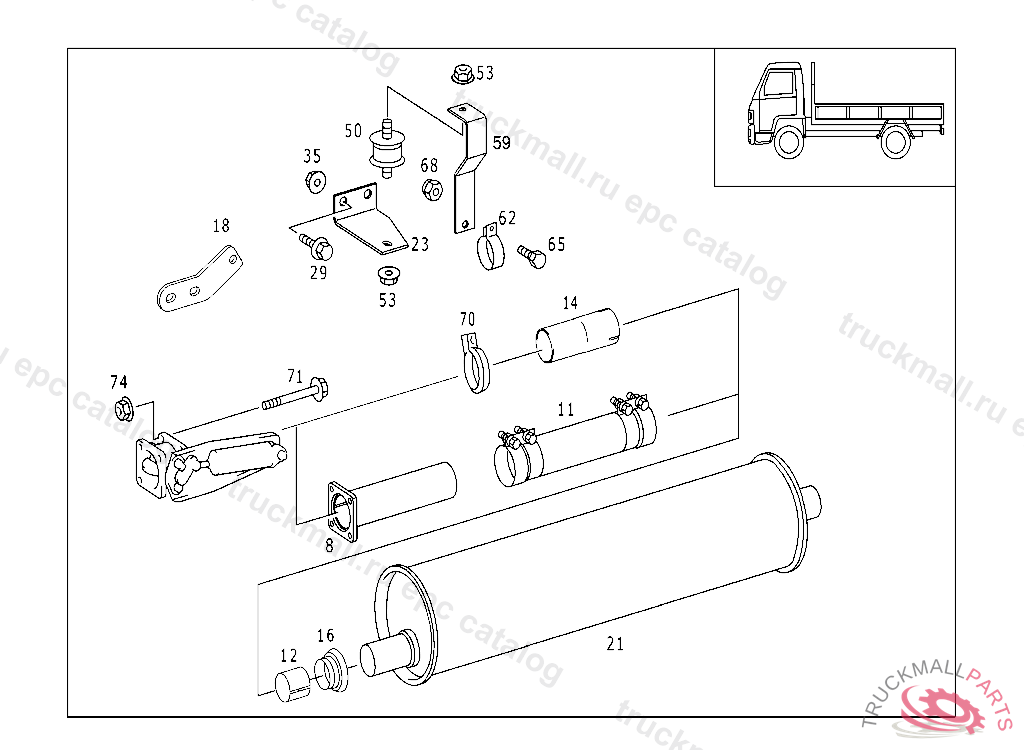

49 EXHAUST SYSTEM - 030 EXHAUST SYSTEM IL. 3

Поз.
Артикул
Описание
11
A9704900265
FLEXIBLE METAL TUBE CONNECTION OF EXHAUST PIPES WITH EACH OTHER, FOR COMPONENT PARTS SEE SPARE PARTS LIST, Replaced By: A9704900565
16
A6204923109
CONNECTOR FLANGED ELBOW
21
A6674900001
21
A6844910001
35
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
A3714927087
BUFFER
53
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
59
A6844922241
62
N071555075502
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
65
N304017010047
SCREW CONNECTOR TO REAR SHIFTING ROD
68
N910113010001
NUT CROSS MEMBER TO SIDE MEMBERS
70
A6209970490
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
71
N910105008020
SCREW EXHAUST PIPE TO MUFFLER AND TO HEATER UNIT M 8X55
74
N913023008002
NUT ENGINE MOUNTING M8
