Mercedes N304017010047 - Винт M 10 X 35

MB 8000/42 684.492

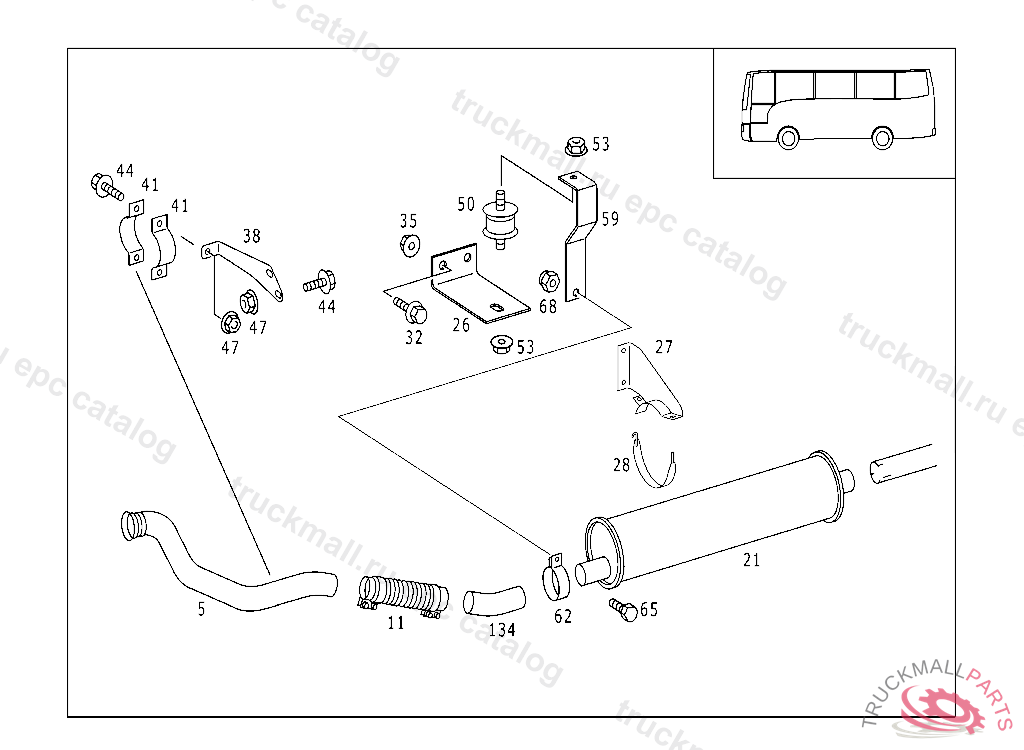

49 EXHAUST SYSTEM - 030 EXHAUST SYSTEM IL. 1

Поз.
Артикул
Описание
5
A6844901719
5
A6844901619
11
A9704900265
FLEXIBLE METAL TUBE CONNECTION OF EXHAUST PIPES WITH EACH OTHER, FOR COMPONENT PARTS SEE SPARE PARTS LIST, Replaced By: A9704900565
21
A6674900001
21
A6844910001
26
A6844922041
27
A6844900034
28
A6844900042
32
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
35
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
38
A6844923441
41
A6844924040
44
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
47
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
A3714927087
BUFFER
53
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
59
A6844922241
62
N071555075502
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
65
N304017010047
SCREW CONNECTOR TO REAR SHIFTING ROD
68
N910113010001
NUT CROSS MEMBER TO SIDE MEMBERS
