Поз.
Артикул
Описание

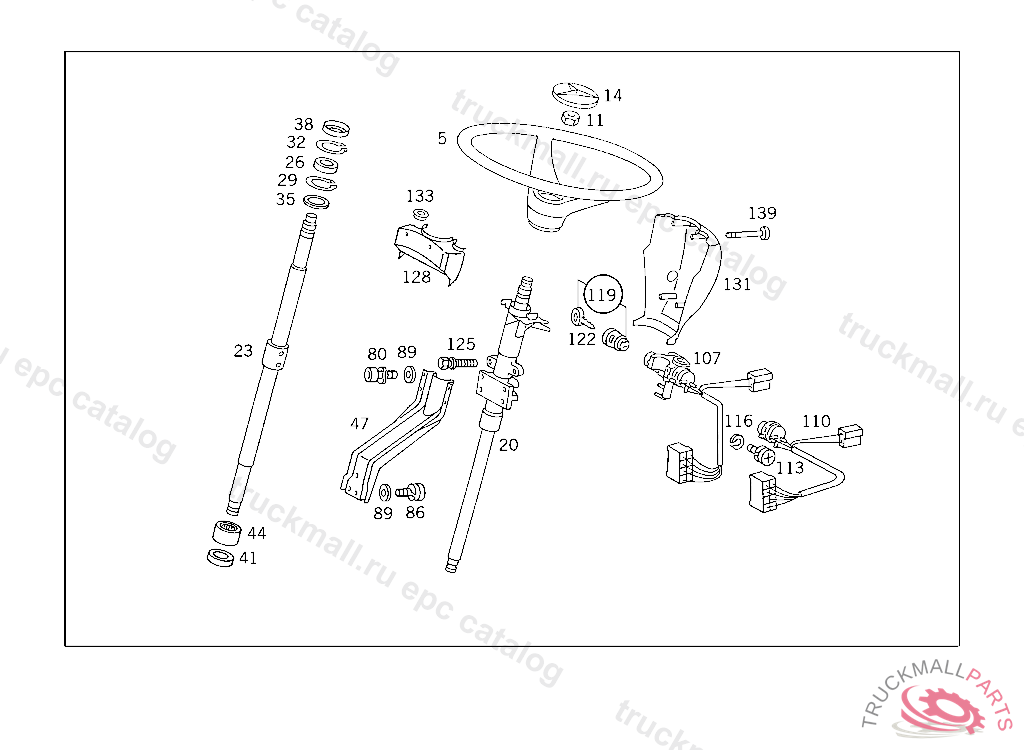

5
STEERING WHEEL ,K 072836 IINO.7B90 III
11
NUT STEERING WHEEL TO STEERING COLUMN
14
BADGE STEERING WHEEL,K 072836 IINO.7B90 III
20
STEERING SHAFT , NOT USED
23
STEERING SHAFT
26
BALL BEARING
29
LOCK RING
32
LOCK RING
35
WASHER
38
COVER
41
COVER
44
NEEDLE BEARING
44
NEEDLE BEARING
47
STEERING COLUMN BRACKET
80
COMBINATION BOLT STEERING COLUMN BRACKET TO STEERING COLUMN
86
COMBINATION BOLT , Replaced By: N000933008271, +001N912004008100
89
WASHER BRACKET TO FENDER BRACKET
107
STEERING LOCK , Replaced By: A6824627030
110
SWITCH BOX IGNITION/STARTING SWITCH
113
COMBINATION BOLT STEERING COLUMN MOUNTED SWITCH AND HORN
116
LOCK WASHER STEP SWITCH
119
OUTFIT (LOCK,KEY,HANDLE) WITH KEY "UNIVEL"
119
OUTFIT (LOCK,KEY,HANDLE) WITH KEY "HAGA"
122
KEY BLANK "HAGA"
122
KEY BLANK "UNIVEL"
125
SCREW (BREAK-OFF BOLT),STEERING LOCK MOUNTING
128
SHELL STEERING COLUMN
131
SHELL STEERING COLUMN
133
139
SCREW SHELL TO STEERING COLUMN
