L 1317 685.053

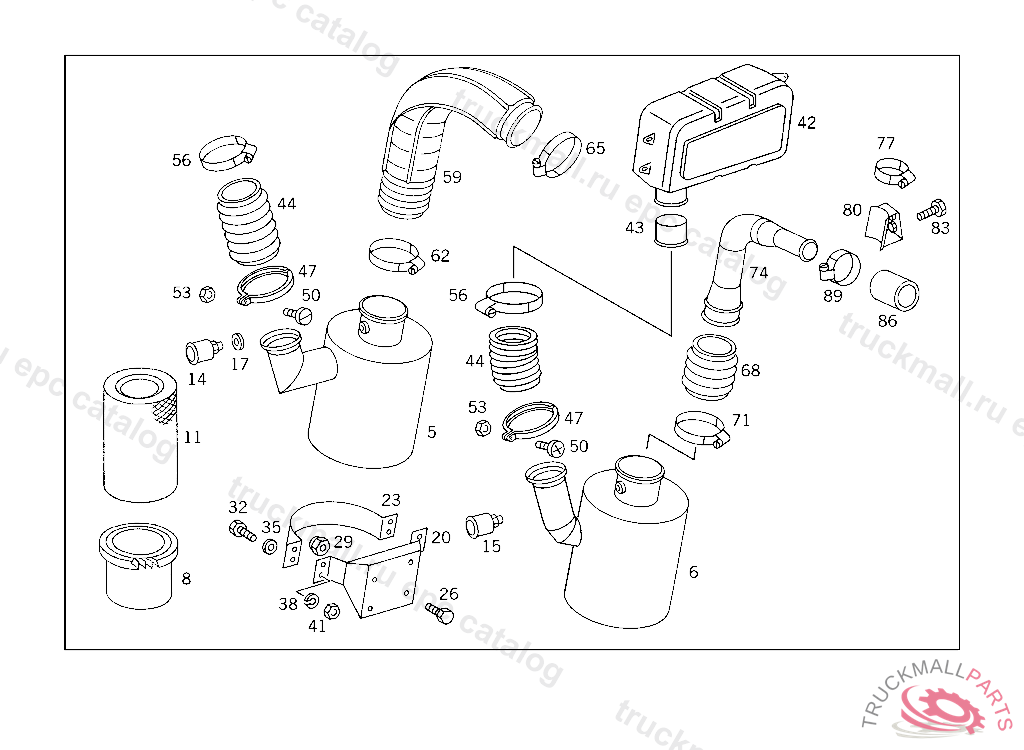

52 CHASSIS SHEET METAL - 160 AIR INTAKE AND AIR CLEANER
Поз.
Артикул
Описание
5
HXM6850900201
8
HXM6850940004
11
HXM6850940104
14
Q501317R91
17
Q501072R1
20
HXM6855280240
20
HXM6855200141
23
HXM6855280021
26
Q414051C1
26
A6859901901
29
A6859900151
NUT BRAKE ANCHOR PLATE TO STEERING KNUCKLE 1/2-20 FG8
29
Q414087C1
PART NAME MISSING , Replaced By: A6859900151
32
Q25751R1
32
A6859900901
35
A6859900240
35
Q25708R1
38
Q120214
PART NAME MISSING LOCK WASHER 5/16
38
A6859900147
41
Q25520R1
41
A6859900751
44
A3845287091
BOOT AIR CLEANER
44
A3845287191
BOOT AIR CLEANER
47
A3845287043
CLAMP BELLOWS TO AIR CLEANER
50
N000084004164
SCREW CLAMP MOUNTING
53
N000934004004
NUT AIR INTAKE PIPE TO AIR INTAKE PIPE,937184
56
A6849977290
LOOM TIE
59
A3845287382
HOSE , Replaced By: A3845287882
62
A6849977290
LOOM TIE
65
A6849977390
CLAMP
