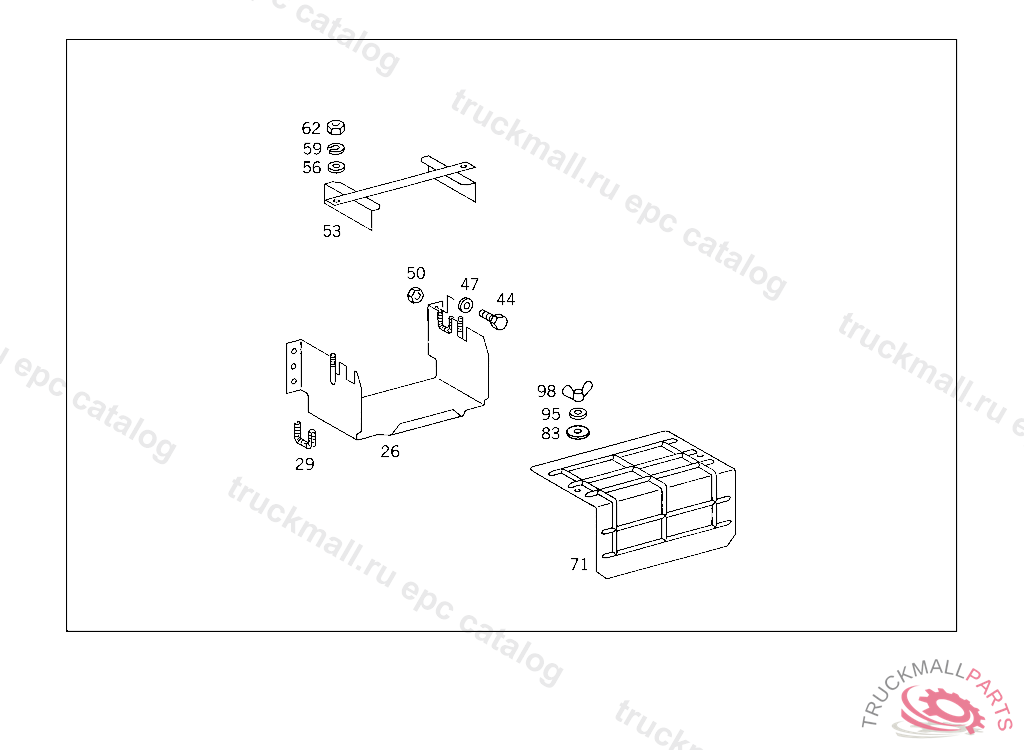

L 2121, 2221 - 685.158 - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
Поз.
Артикул
Описание
26
BATTERY CASE
29
INSULATION. EDGE GUARD SECTION LINE TO CROSS AND SIDE MEMBERS, ORDER BY THE METER
44
PART NAME MISSING SCREW
47
PART NAME MISSING WASHER
50
PART NAME MISSING NUT 1/2-13
53
56
WASHER VALVE TO BRACKET 5/16
59
PART NAME MISSING LOCK WASHER 5/16
62
PART NAME MISSING NUT 5/16-18
71
83
RUBBER RING COVER TO BATTERY CASE
95
PART NAME MISSING WASHER 5/16
98
PART NAME MISSING NUT
