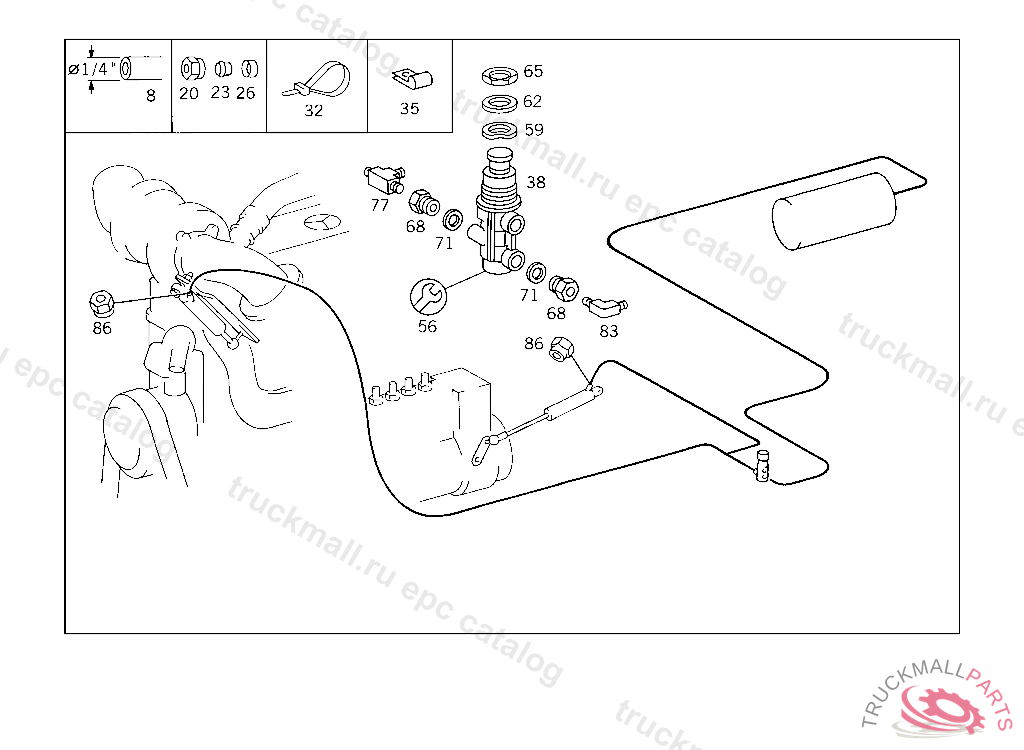

Поз.
Артикул
Описание
8
PART NAME MISSING PLASTIC TUBE
20
23
SEAL CONE GLAND 1/4"
26
SPACER TUBE SLEEVE 1/4"
32
PART NAME MISSING LOOM TIE
38
VALVE EXHAUST BRAKE OPERATING MECHANISM WESTINGHOUSE
38
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
56
REPAIR KIT 3/2-WAY VALVE BOSCH
56
REPAIR KIT 3/2-WAY VALVE WABCO
59
62
PART NAME MISSING WASHER
65
NUT SUCTION LINE TO OIL PUMP
68
ELBOW FITTING THREE-WAY VALVE,CONNECTIONS: "12,22"
71
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
77
83
PART NAME MISSING SEAL RING
86
