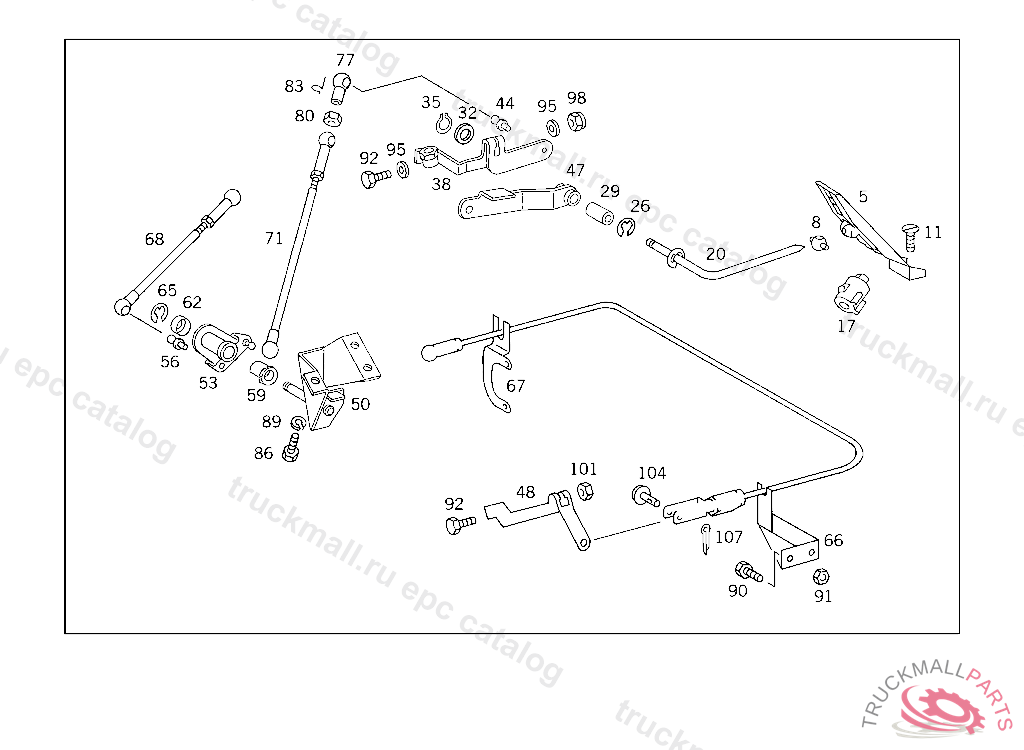

0 1419 - 685.193 - 30 CONTROL
Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
8
JOINT
11
SCREW ACCELERATOR PEDAL TO FLOOR PLATE
26
LOCK PLATE
44
BALL STUD. BALL PIVOT TOP B10X4,5 MM
77
BALL SOCKET PULL ROD TO LEVER
80
NUT
83
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
92
SCREW BRACKET TO FRAME
95
WASHER PLUG SOCKET TO BRACKET
98
NUT PUMP TO BRACKET
