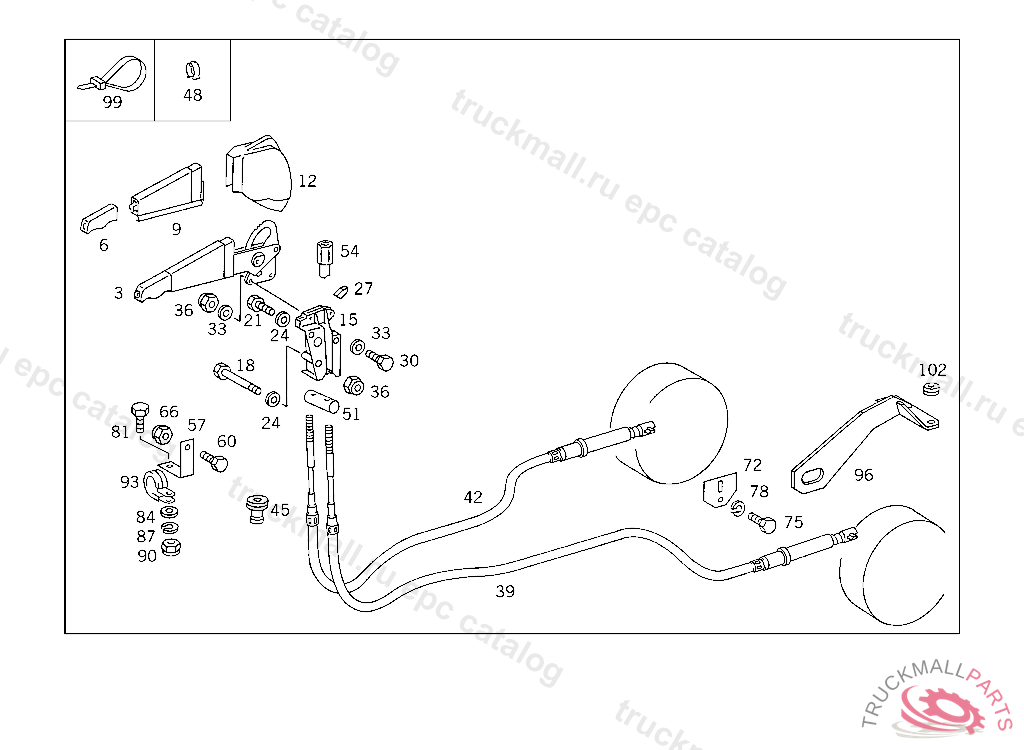

Поз.
Артикул
Описание
3
BRAKE LEVER , NO.8650I.......I.......I I II
6
HANDLE , NO.8650I.......I.......I I II .......INO.9985I.......I I II
9
COVERING , NO.8650I.......I.......I I II .......INO.9985I.......I I II
12
COVERING , NO.8650I.......I.......I I II .......INO.9985I.......I I II
15
CONSOLE
15
CONSOLE
18
SCREW CONSOLE TO CAB M 10X80
21
SCREW BRACKET TO SIDE MEMBER M10X30
24
WASHER CONSOLE TO CAB
27
STOP BUFFER. DAMPING RING
30
SCREW BRACKET TO SIDE MEMBER
33
WASHER GROUND CABLE
36
NUT BRAKE LEVER TO CONSOLE
39
BRAKE CABLE FRONT LEFT
42
BRAKE CABLE FRONT RIGHT
45
GROMMET
48
SPRING BRAKE CABLE
51
PIN BRAKE CABLE TO BRAKE LEVER
54
NUT BRAKE CABLE TO BRAKE LEVER
57
BRACKET TO ENGINE
57
BRACKET BRACKET TO FENDER BRACKET
60
SCREW , Replaced By: N304017010040
60
SCREW STEERING SHAFT BEARING TO CAB M 8X20
66
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
66
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
72
GUIDE PLATE REAR BRAKE CABLE TO BRACKET
75
SCREW SWITCH TO BRACKET 8X16
78
LOCK WASHER RAIL TO BATTERY SUPPORT
81
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
84
WASHER PLUG SOCKET TO BRACKET
87
LOCK WASHER CABLE TO FUSE BOX
90
NUT
93
CLAMP DELIVERY AND SUCTION LINES TO FRAME
93
CLAMP BATTERY POS. CABLE TO BRACKET
96
BRACKET
99
LOOM TIE , Replaced By: A3459977390
102
GROMMET LINE THRU LEFT SIDE MEMBER
