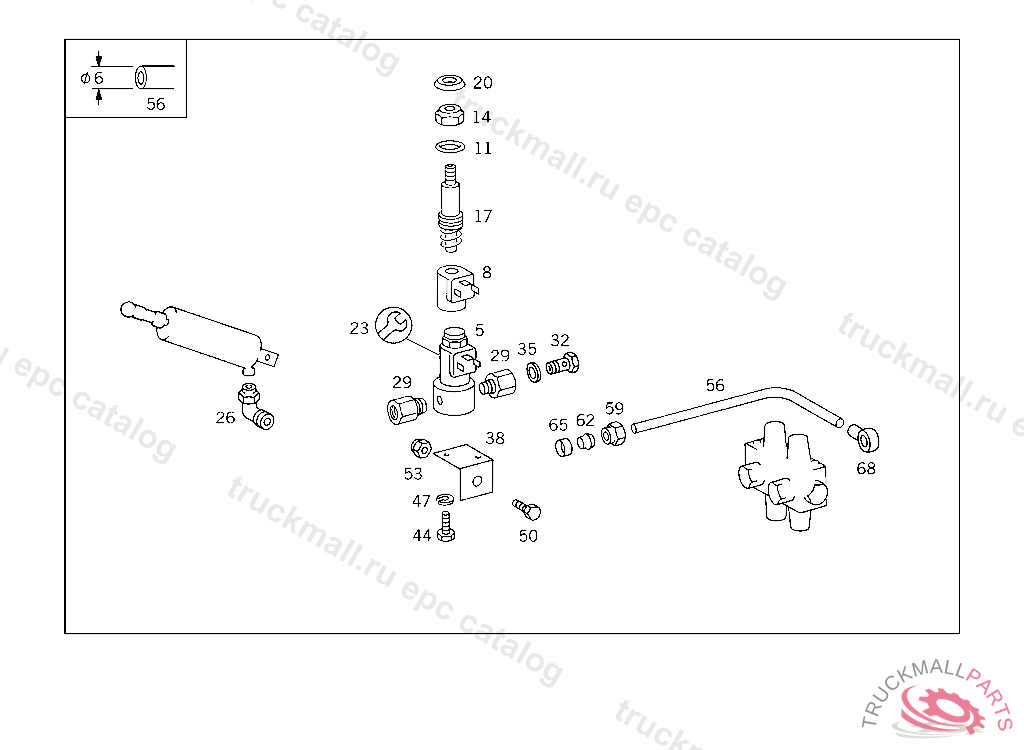

Поз.
Артикул
Описание
5
VALVE 3/2-WAY SOLENOID VALVE
5
VALVE 3/2-WAY SOLENOID VALVE
5
VALVE 3/2-WAY
8
SOLENOIDTO 693 420 73 71
8
MAGNET12 V, TO 345 997 74 36
11
SEAL RING
14
NUT
17
VALVE PART
20
PROTECTIVE CAP
23
REPAIR KITTO 388 997 88 36
26
FITTING , Replaced By: A0019909871
29
FITTING SOLENOID VALVE,CONNECTION: "2"
32
HOLLOW SCREW HEATING CONNECTION
35
SEAL RING LINE CONNECTION
38
BRACKET DISTRIBUTOR
44
SCREW 3/2-WAY VALVE TO BRACKET
47
LOCK WASHER T-FITTING TO BRACKET
50
SCREW BRACKET TO BUMPER,LEFT M 10X25
53
NUT BRACKET TO SIDE MEMBER,XB209706
56
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
59
UNION NUT
62
GLAND , Replaced By: A0019901667
65
SLEEVE LEAK LINE
68
BANJO UNION
999
REPAIR KITTO 388 997 81 36
