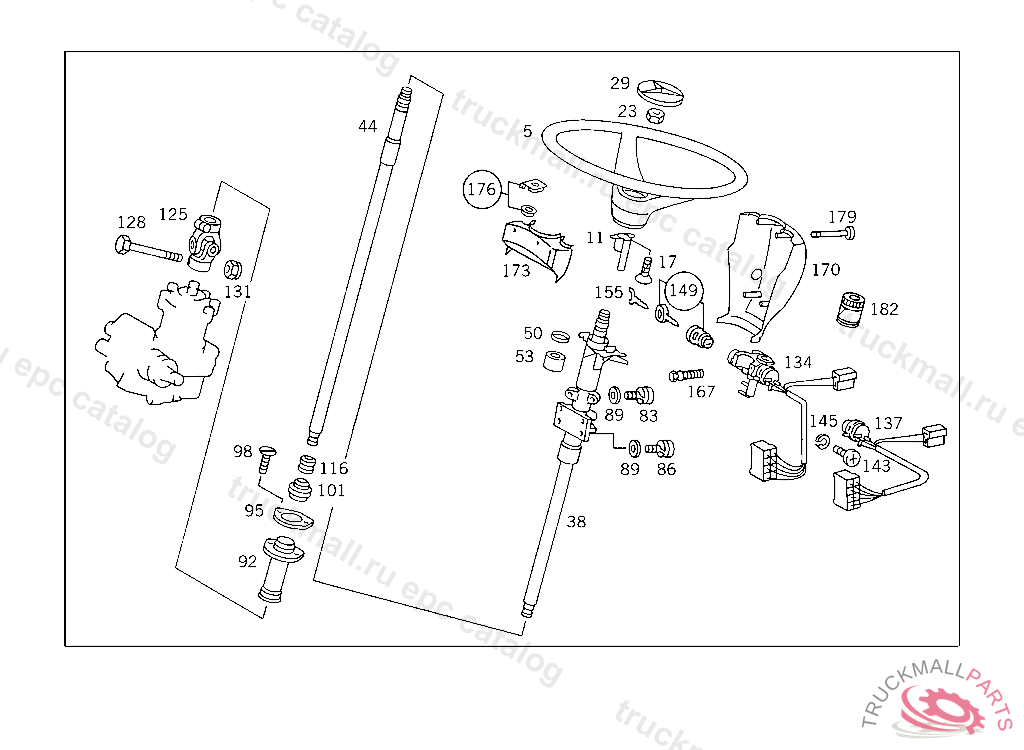

Поз.
Артикул
Описание
5
STEERING WHEEL , Replaced By: A6954647001, +001A6964640031
5
STEERING WHEEL , Replaced By: A6884640001, +001A6694620055, +002N000125003212, +002N007516003108
11
RING HALF STEERING COLUMN MOUNTED SWITCH RESET
17
TAPPING SCREW RING HALF TO STEERING WHEEL
23
NUT STEERING WHEEL TO STEERING COLUMN
29
BADGE STEERING WHEEL,K 072836 IINO.7B90 III
38
STEERING SHAFT , HYDRAULIC STEERING-766.4
44
STEERING SHAFT887 MM, HYDRAULIC STEERING-766.4
44
STEERING SHAFT , Replaced By: A6884627601
44
STEERING SHAFT
50
COVER
53
NEEDLE BEARING
53
NEEDLE BEARING
83
SCREW STEERING SHAFT BEARING TO CAB M 8X20
83
COMBINATION BOLT , Replaced By: N000933008271, +001N912004008100
86
COMBINATION BOLT STEERING COLUMN BRACKET TO STEERING COLUMN
86
SCREW POWER CYLINDER TO BEARING BRACKET
89
LOCK WASHER RAIL TO BATTERY SUPPORT
92
STEER. COLUMN JACKET TUBE STEERING SHAFT
95
SEAL STEERING COLUMN JACKET TUBE TO FLOOR PLATE
98
SCREW STEERING COLUMN JACKET TUBE TO FLOOR PLATE
98
SCREW STEERING COLUMN JACKET TUBE TO FLOOR PLATE
101
BOOT
116
SEAL RING STEERING COLUMN TUBE THRU CAB FLOOR,D 591979
125
UNIVERSAL JOINT UNIVERSAL JOINT TO STEERING COLUMN AND TO STEERING BOX ASSEMBLY
125
UNIVERSAL JOINT UNIVERSAL JOINT TO STEERING COLUMN AND TO STEERING BOX ASSEMBLY
125
UNIVERSAL JOINT UNIVERSAL JOINT TO STEERING COLUMN AND TO STEERING BOX ASSEMBLY
128
SCREW UNIVERSAL JOINT TO STEERING COLUMN M 8X38,5 463984
128
SCREW STEERING SHAFT TO STEERING
131
NUT BRACKET TO SIDE MEMBER
134
STEERING LOCK ENGINE ELECTROPNEUMATIC SHUT-OFF
137
SWITCH BOX IGNITION/STARTING SWITCH
143
SCREW SWITCH BOX TO STEERING LOCK
145
LOCK WASHER STEP SWITCH
149
OUTFIT (LOCK,KEY,HANDLE) WITH KEY "UNIVEL"
149
OUTFIT (LOCK,KEY,HANDLE) WITH KEY "HAGA"
155
KEY BLANK "HAGA"
155
KEY BLANK "UNIVEL"
167
SCREW (BREAK-OFF BOLT),STEERING LOCK MOUNTING
170
SHELL STEERING COLUMN
173
SHELL STEERING COLUMN
176
GROMMET STEERING COLUMN
179
SCREW SHELL TO STEERING COLUMN
179
SCREW SHELL TO STEERING COLUMN M 5X70,D 020659
182
BUSHING
