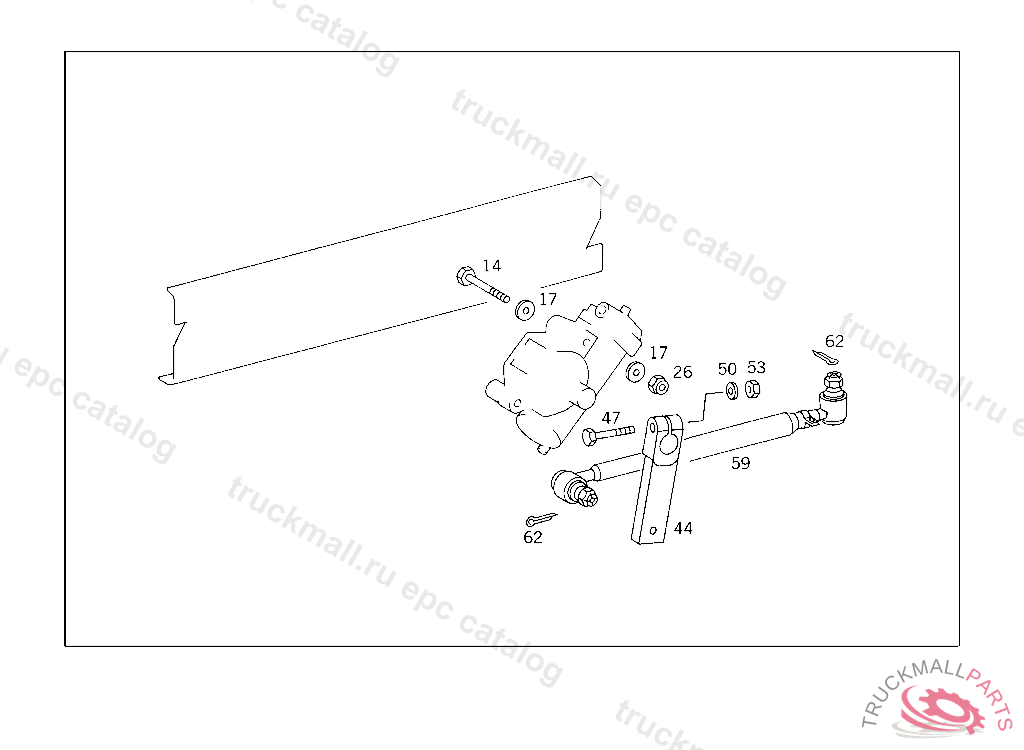

O 1017 - 685.285 - 46 STEERING
Поз.
Артикул
Описание
14
PART NAME MISSING SCREW 3/4-16 X 4 FG8
14
17
PART NAME MISSING WASHER 3/4
26
PART NAME MISSING NUT 3/4-16 CAD G8, INAPPLICABLE TO BM 685.441-327,310 BM 685.448-310
44
47
50
PART NAME MISSING WASHER 5/8-1.312-.149 Z
53
59
62
PART NAME MISSING COTTER PIN 1/8X1 3/4
