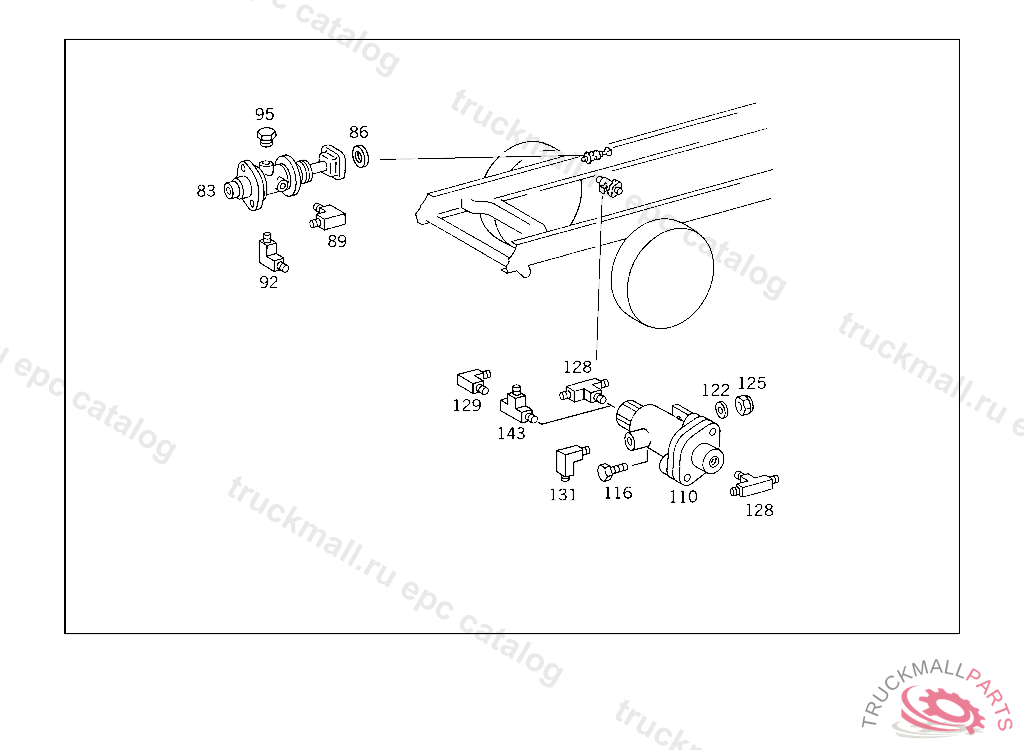

O 1017 - 685.285 - 42 BRAKES
Поз.
Артикул
Описание
83
VALVE (HAND BRAKE VALVE)
86
PART NAME MISSING WASHER
89
PART NAME MISSING ELBOW FITTING 90 GR. 1/8 NPTFM X 3/8 T
92
PART NAME MISSING ELBOW FITTING
95
PART NAME MISSING SCREW PLUG 1/8 NPTFM
110
VALVE (CHECK VALVE)
116
PART NAME MISSING BRACKET TO FRONT CROSS MEMBER 5/16-18 X 1 FG8
122
WASHER VALVE TO BRACKET 5/16
125
PART NAME MISSING NUT
128
129
131
PART NAME MISSING ELBOW FITTING 45 GR. 1/4 NPTFM X 3/8 T
