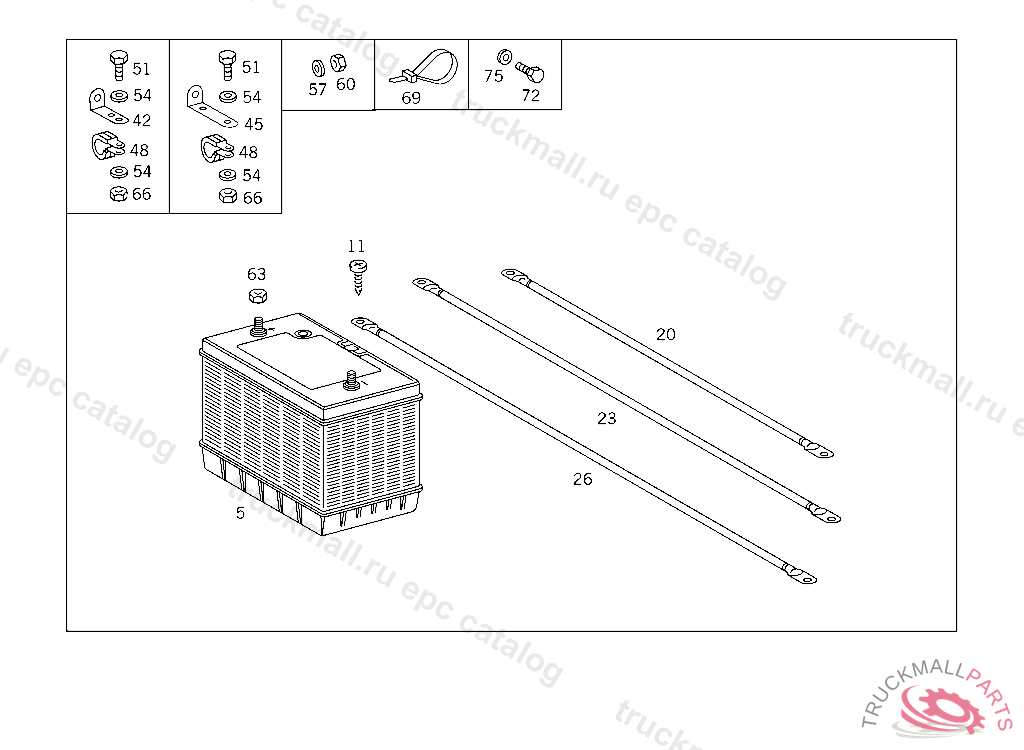

Поз.
Артикул
Описание
5
BATTERY12V
11
SHEET METAL SCREW BRACKET TO FIRE WALL
20
NEG. CABLE
23
NEG. CABLE
26
NEG. CABLE
42
BRACKET BRACKET
45
PART NAME MISSING BRACKET, INAPPLICABLE TO BM 685.458-002
48
PART NAME MISSING CLAMP
51
SCREW SCREW 1/4-20,3AM 685442 50 038885
51
PART NAME MISSING SCREW 1/4-20
54
WASHER BRACKET TO CROSS MEMBER, INAPPLICABLE TO BM 685.458-002
57
PART NAME MISSING WASHER 3/8
60
PART NAME MISSING NUT
63
PART NAME MISSING NUT 3/8-16
66
NUT NUT
69
PART NAME MISSING STRAP
72
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
75
WASHER VALVE TO BRACKET 5/16
999
SWITCH
999
NEG. CABLE
999
POSITIVE CABLE
999
POSITIVE CABLE
999
CABLE PROTECTOR BATTERY NEG. POLE
999
CABLE PROTECTOR BATTERY POS. POLE
