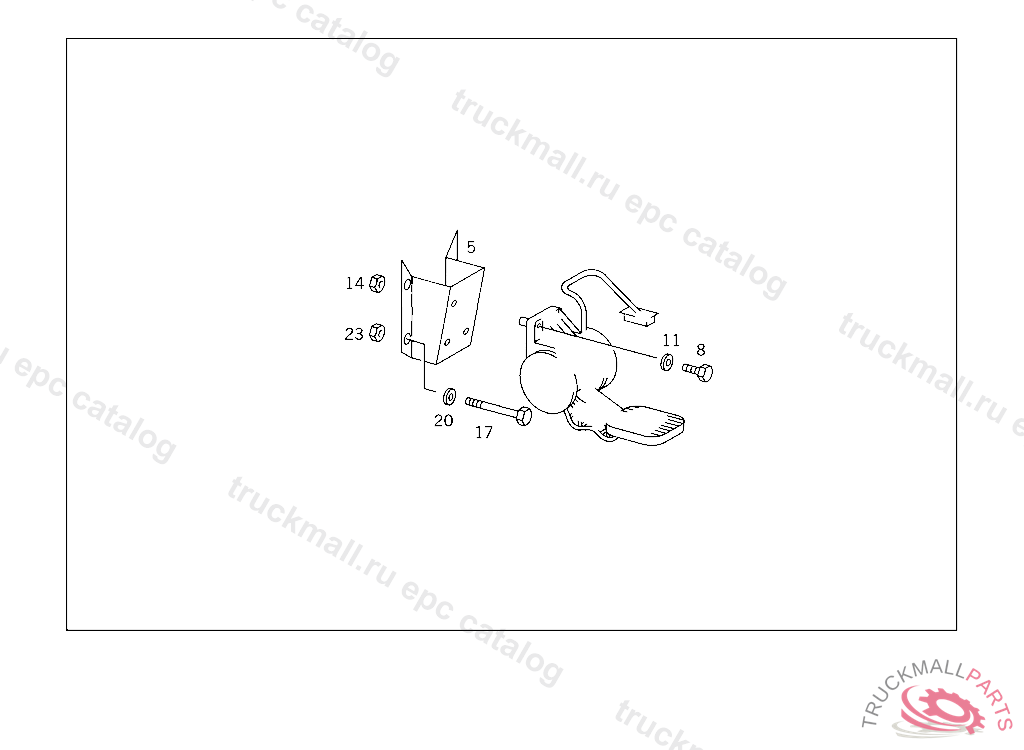

MBO 1018 - 685.286 - 30 CONTROL
Поз.
Артикул
Описание
5
BRACKET ACCELERATOR PEDAL
8
PART NAME MISSING SCREW 5/16-18
11
WASHER VALVE TO BRACKET 5/16
14
PART NAME MISSING NUT
17
SCREW SCREW 1/4-20,3AM 685442 50 038885
17
PART NAME MISSING SCREW 1/4-20
20
WASHER BRACKET TO CROSS MEMBER, INAPPLICABLE TO BM 685.458-002
23
NUT NUT
